Rhino, Photoshop, & Adobe Illustrator
Year 2 - Architectural Design II - Christof Jantzen
I - Concept Design

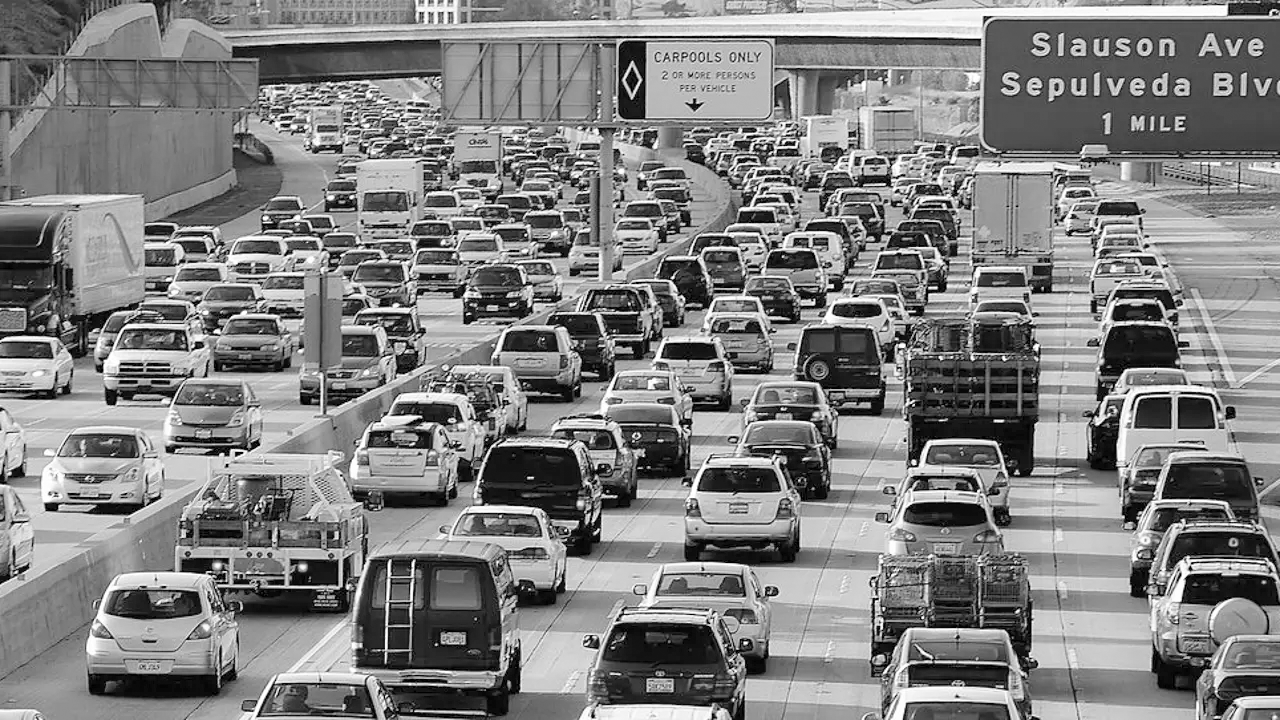

The LA freeway system, a once prospective outlook on transportation during the peak of car culture as well as during the writing of Reyner Banham’s book, has descended into a state of modern hysteria, unable to manage the city’s growing population as seen through heavy the constant traffic, producing heavy air and noise pollution, and serving as a monument to the Los Angeles’s past of racism and history of displacing black and brown communities.




In designing the city of the future in Part I, a city of the future should consider the existing cultural and historical conditions that caused the current problems within the city’s building systems. Our group wanted to ensure that our solution to the existing problems that inflict our ecology would not be propagated by our design, meaning our design would work to abstain from displacing the surrounding communities near the four-level interchange, not repeating the racist historical precedent that occurred in the initial construction of the Los Angeles freeway system.

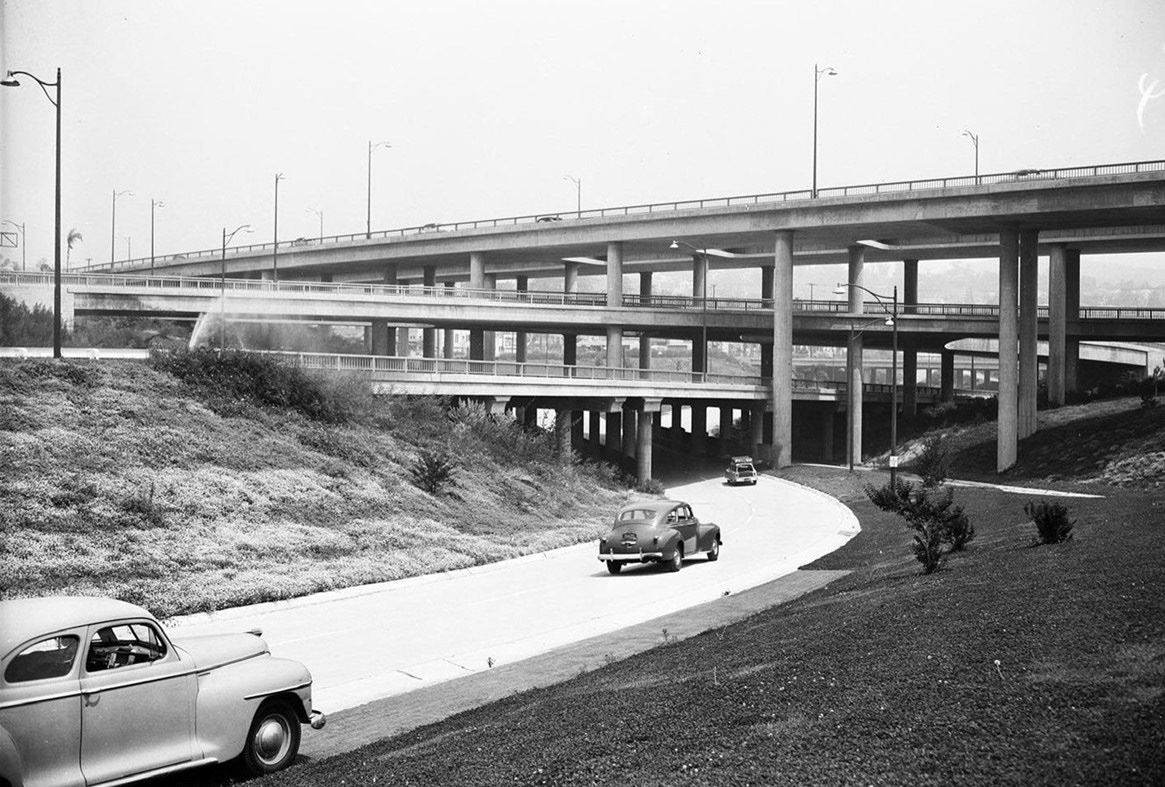

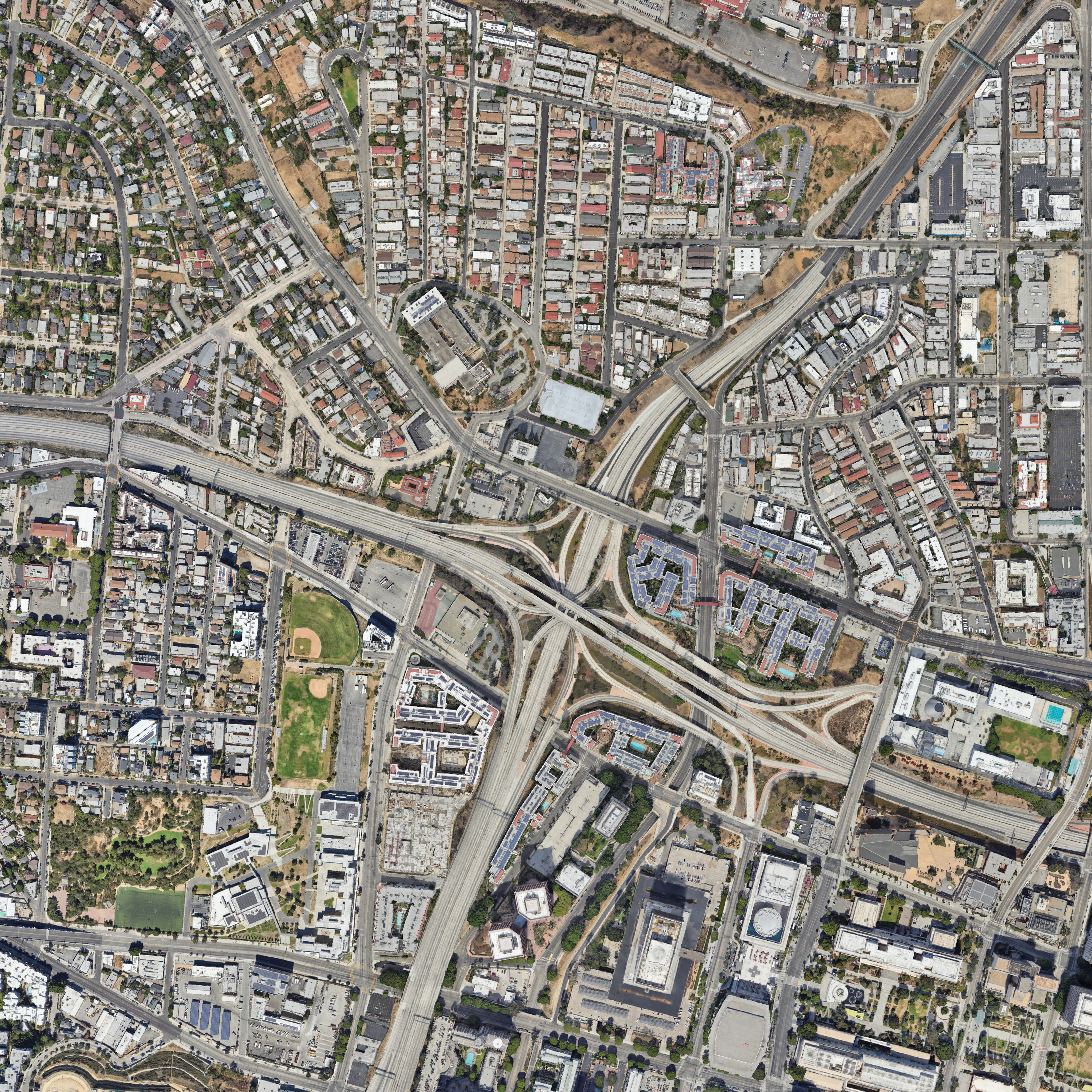

Existing Site - Four-Level Interchange at the intersection of the 110 and 101 freeways near downtown Los Angeles

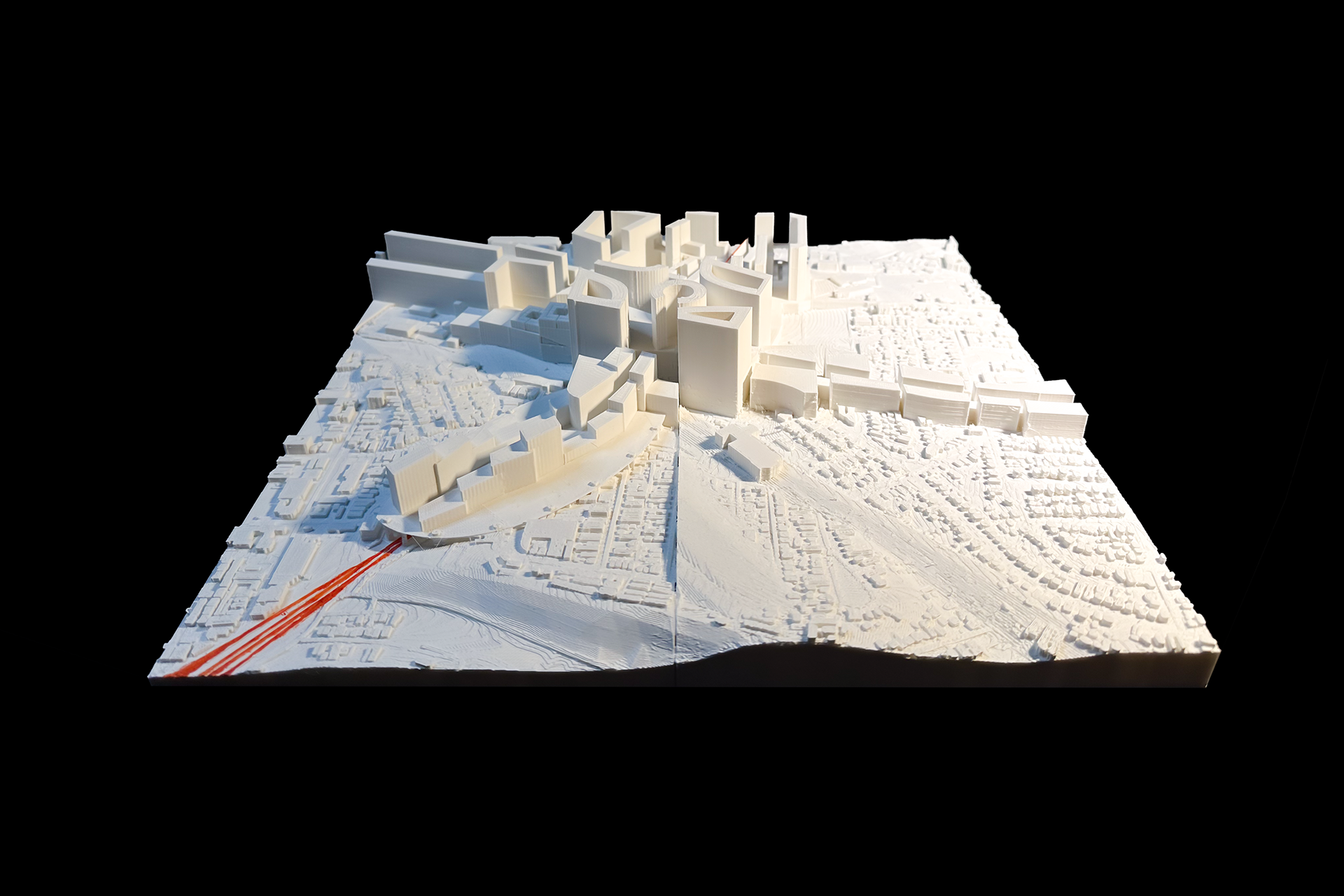

The Proposal

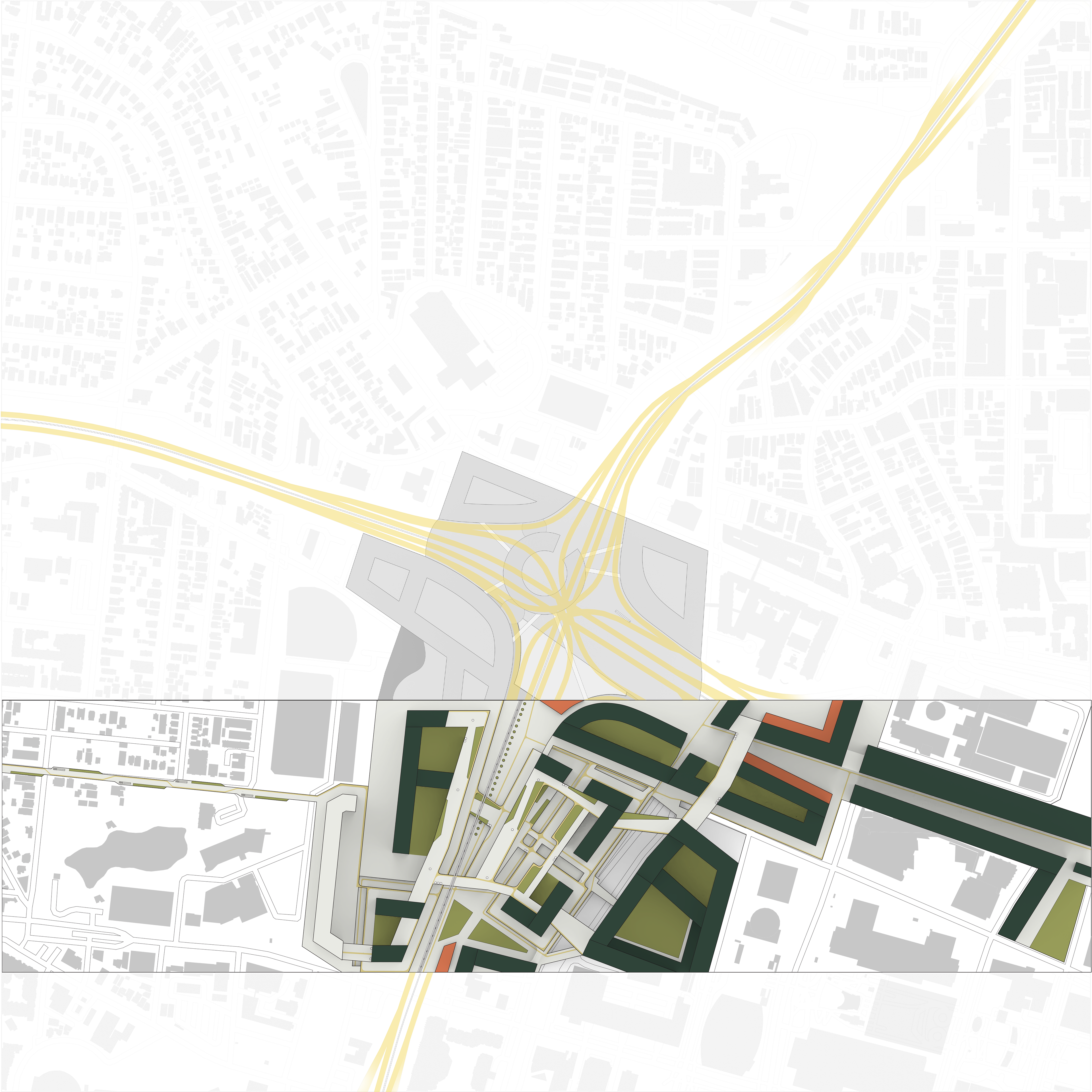

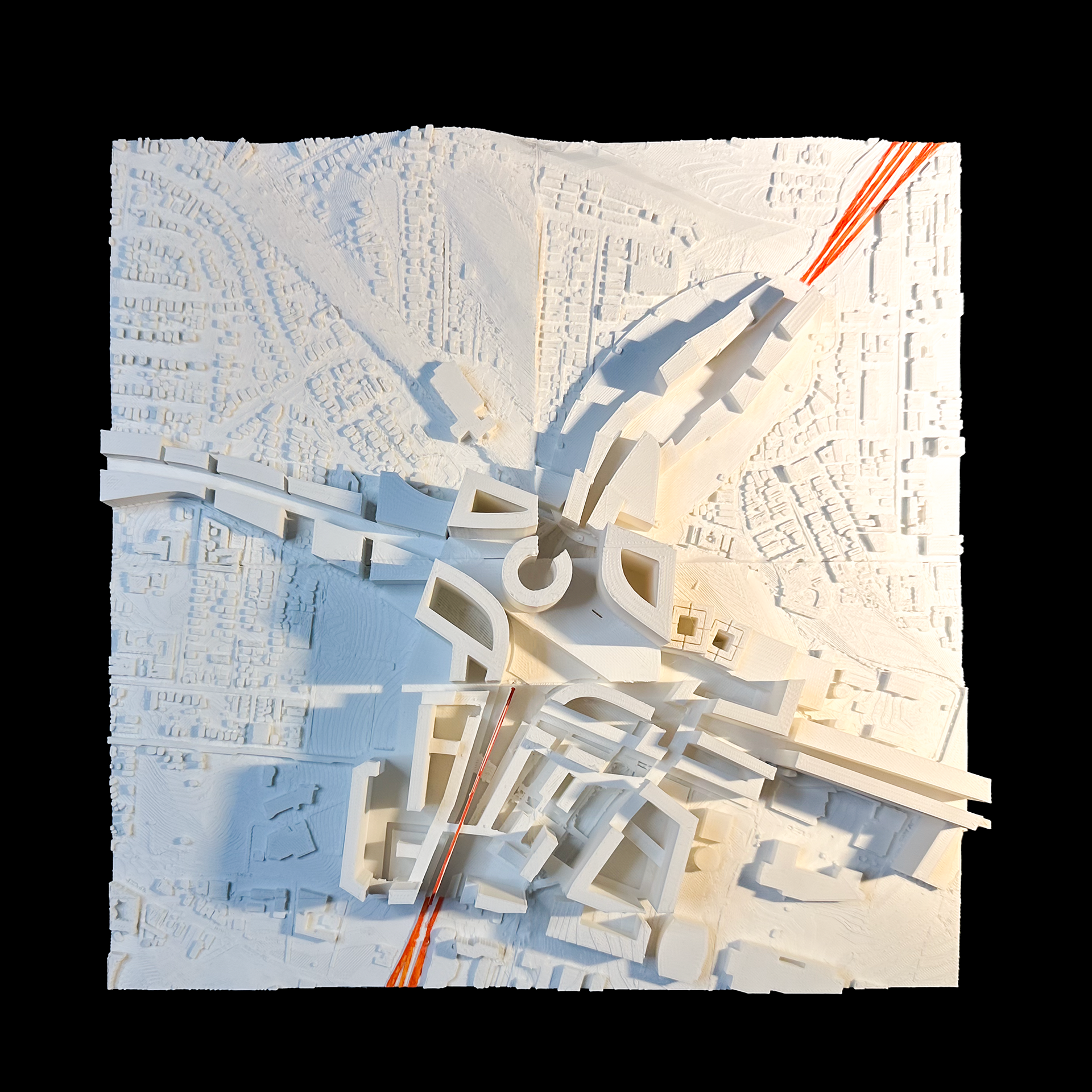

Overall Site Plan

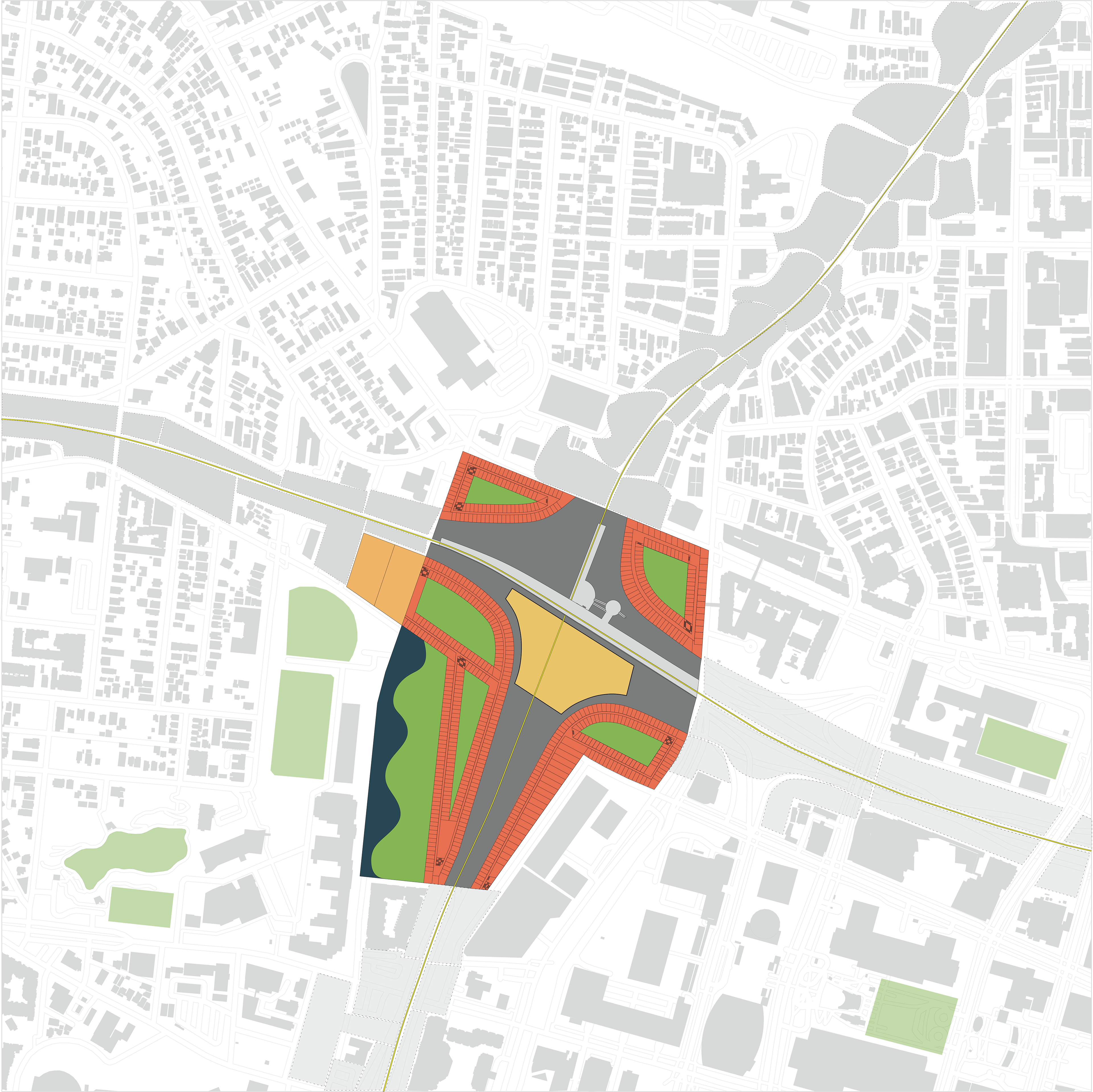

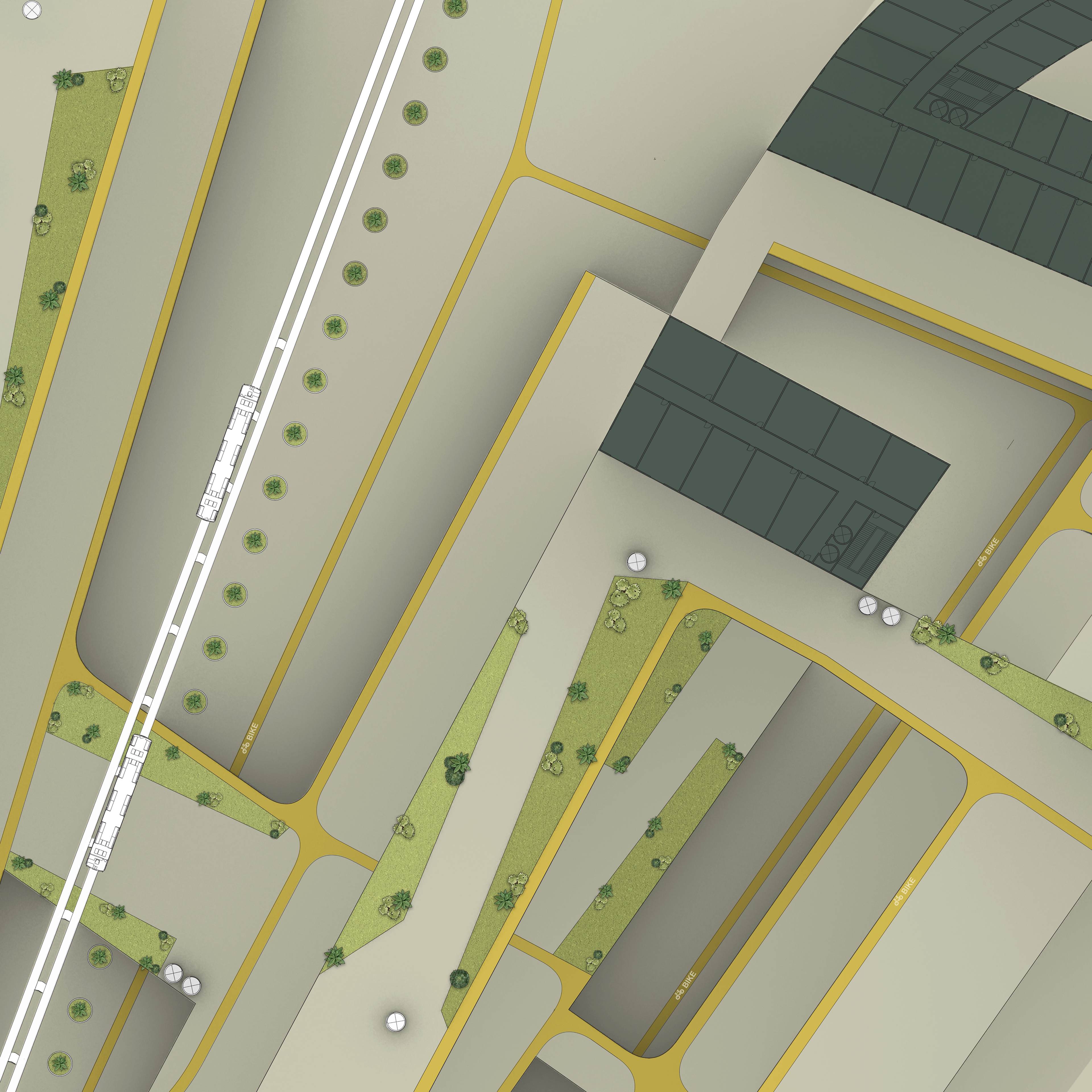

Detailed Site Plan

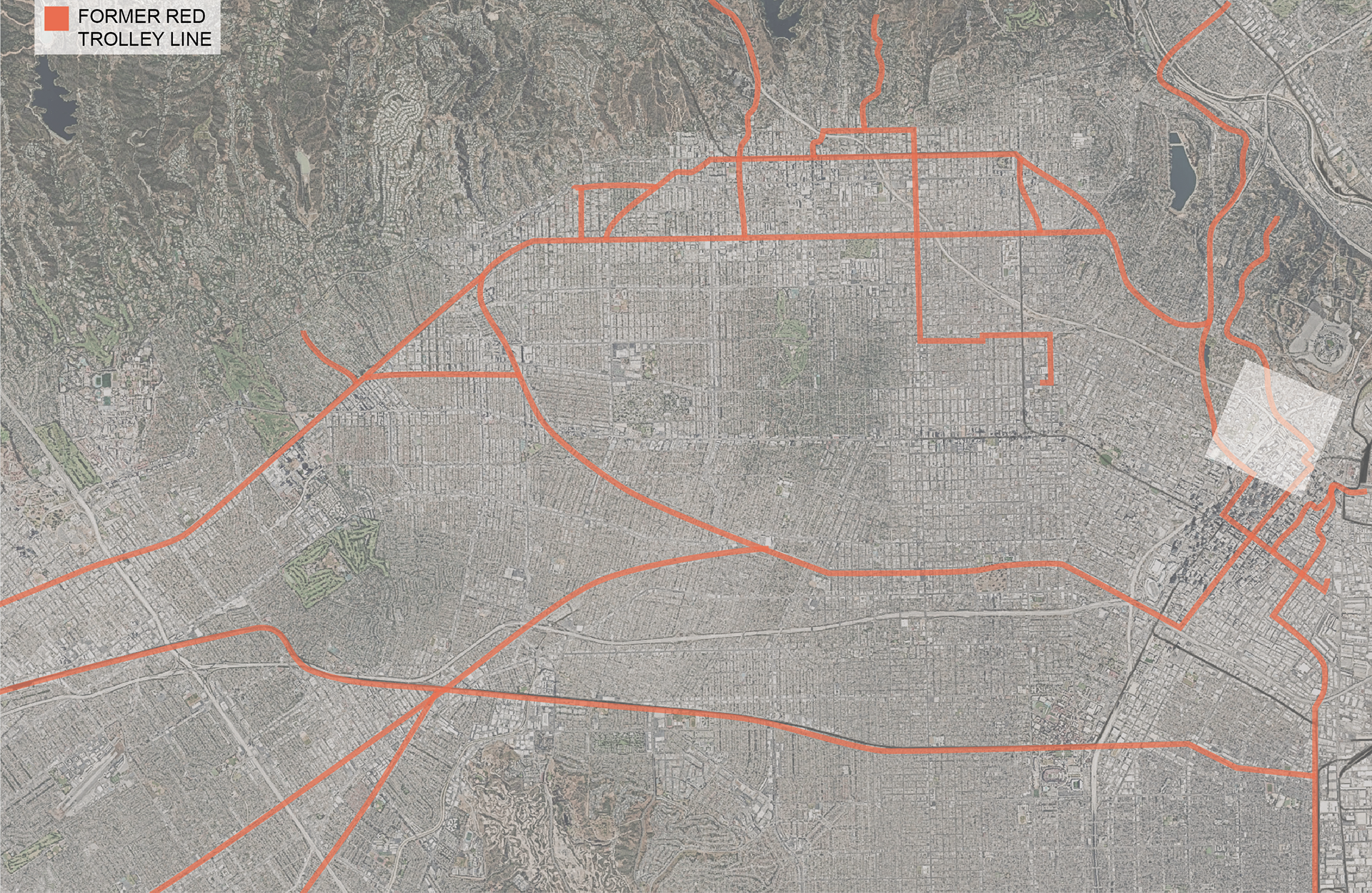

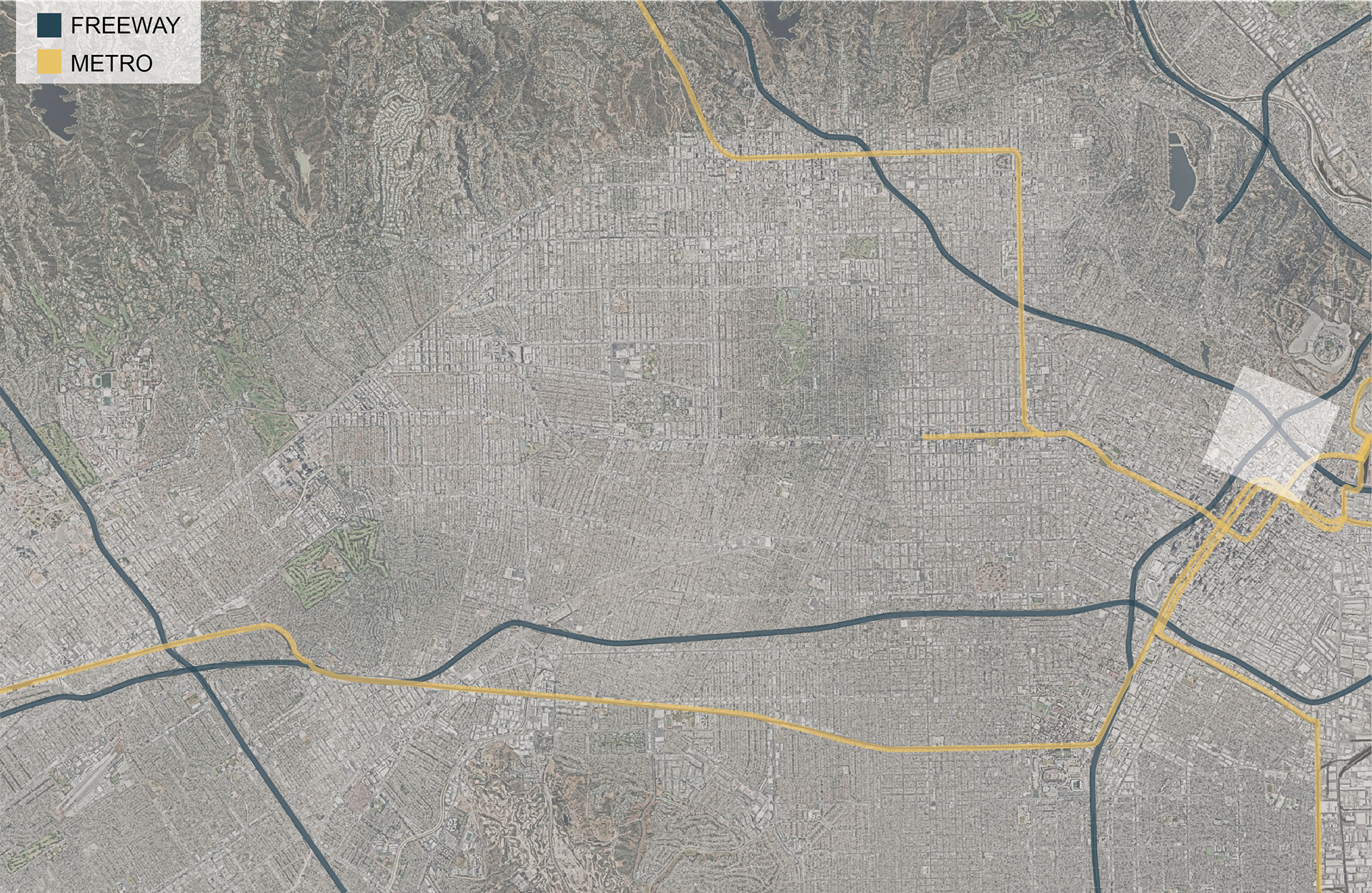

Transportation Maps

Past

Present

Proposal

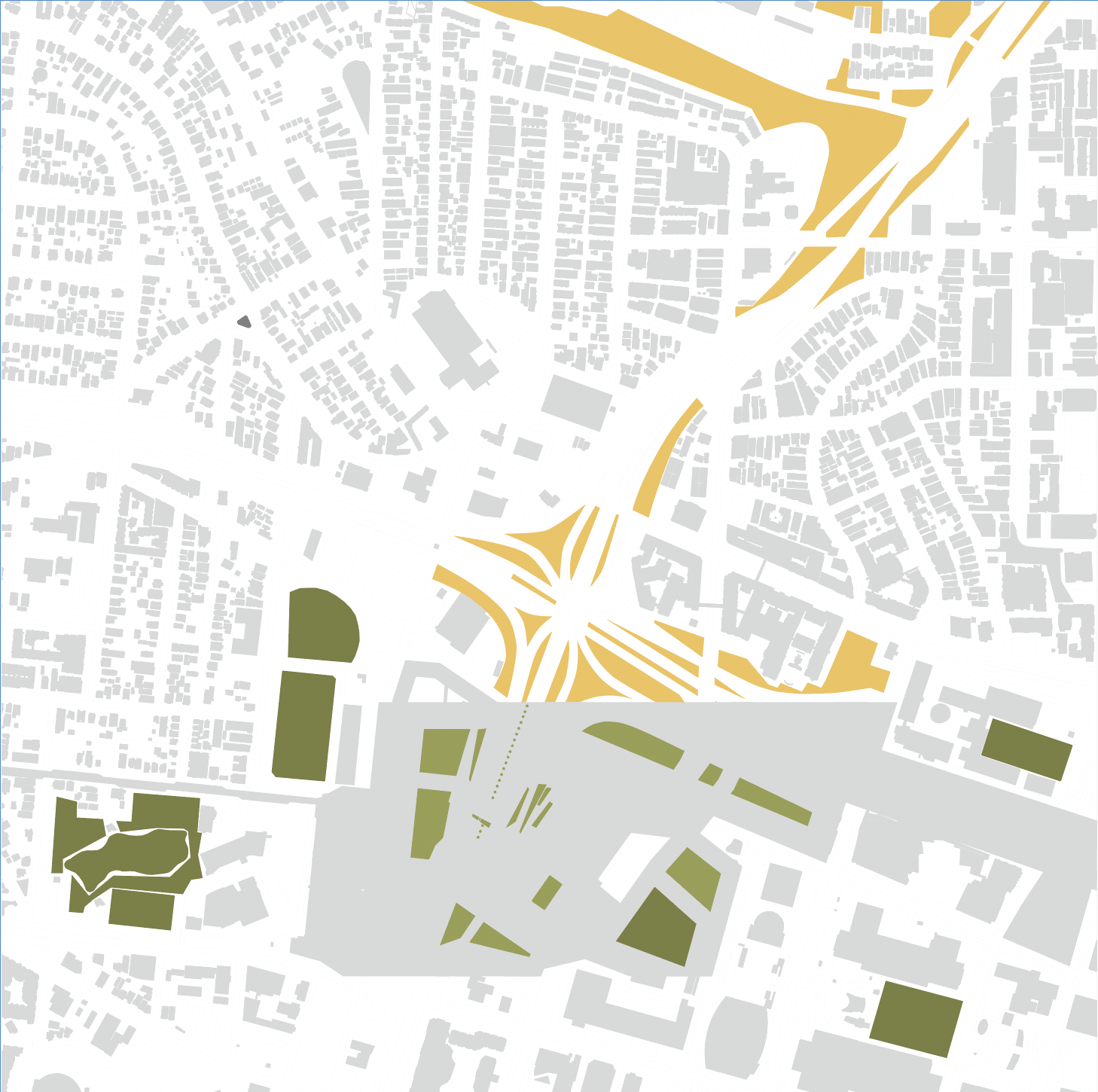

Open Space Diagrams

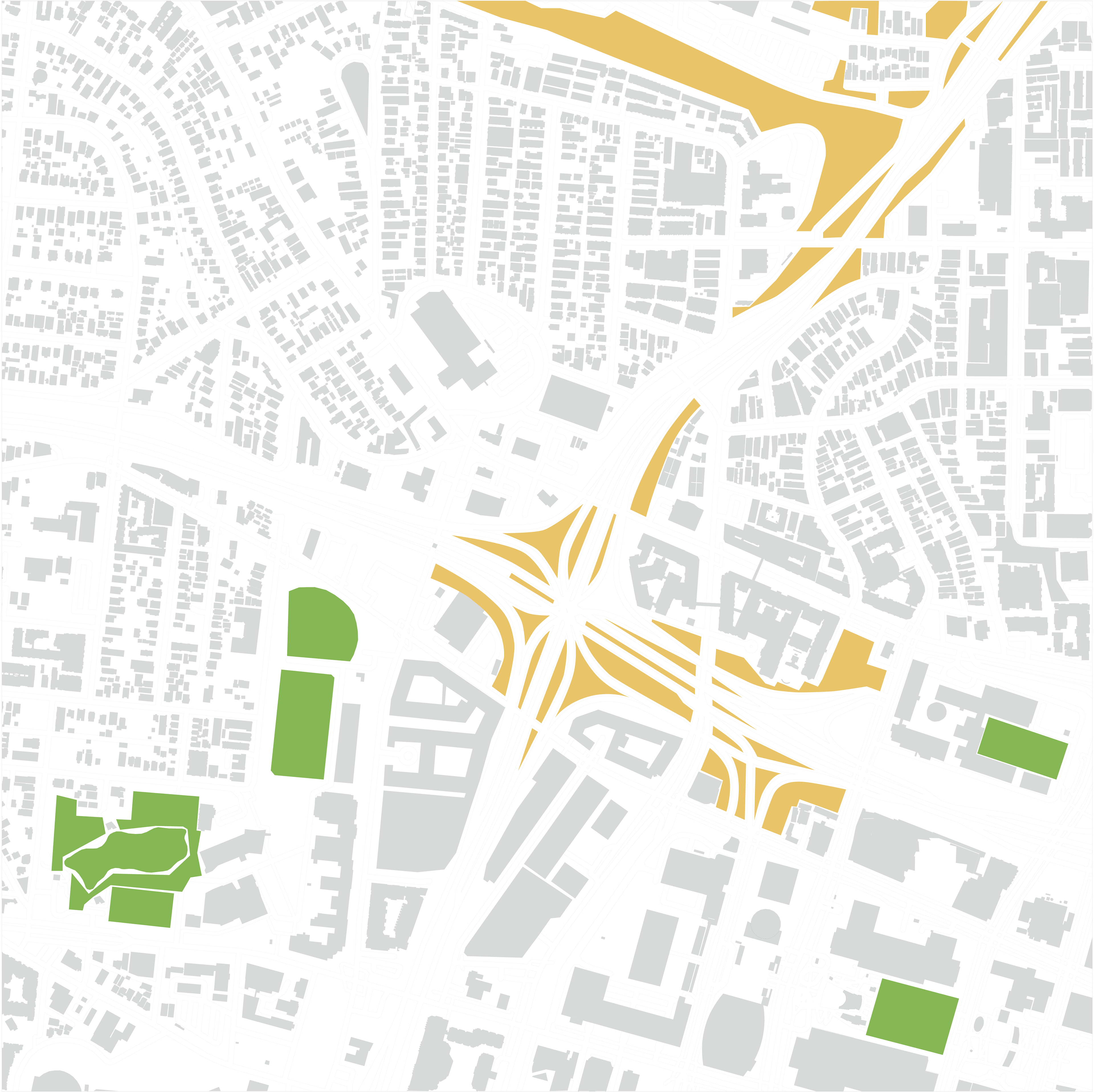

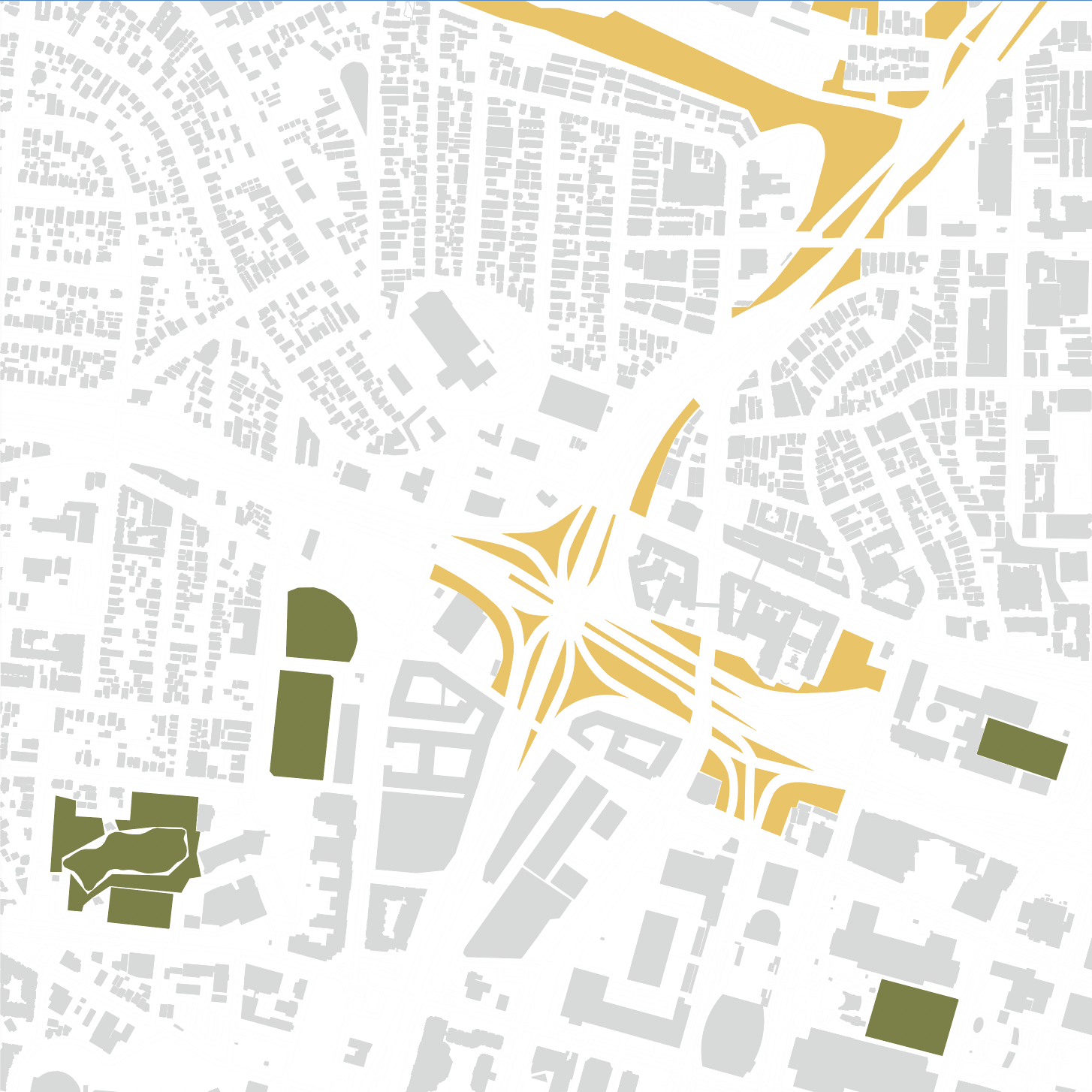

Open Space - Present

Open Space - Proposal

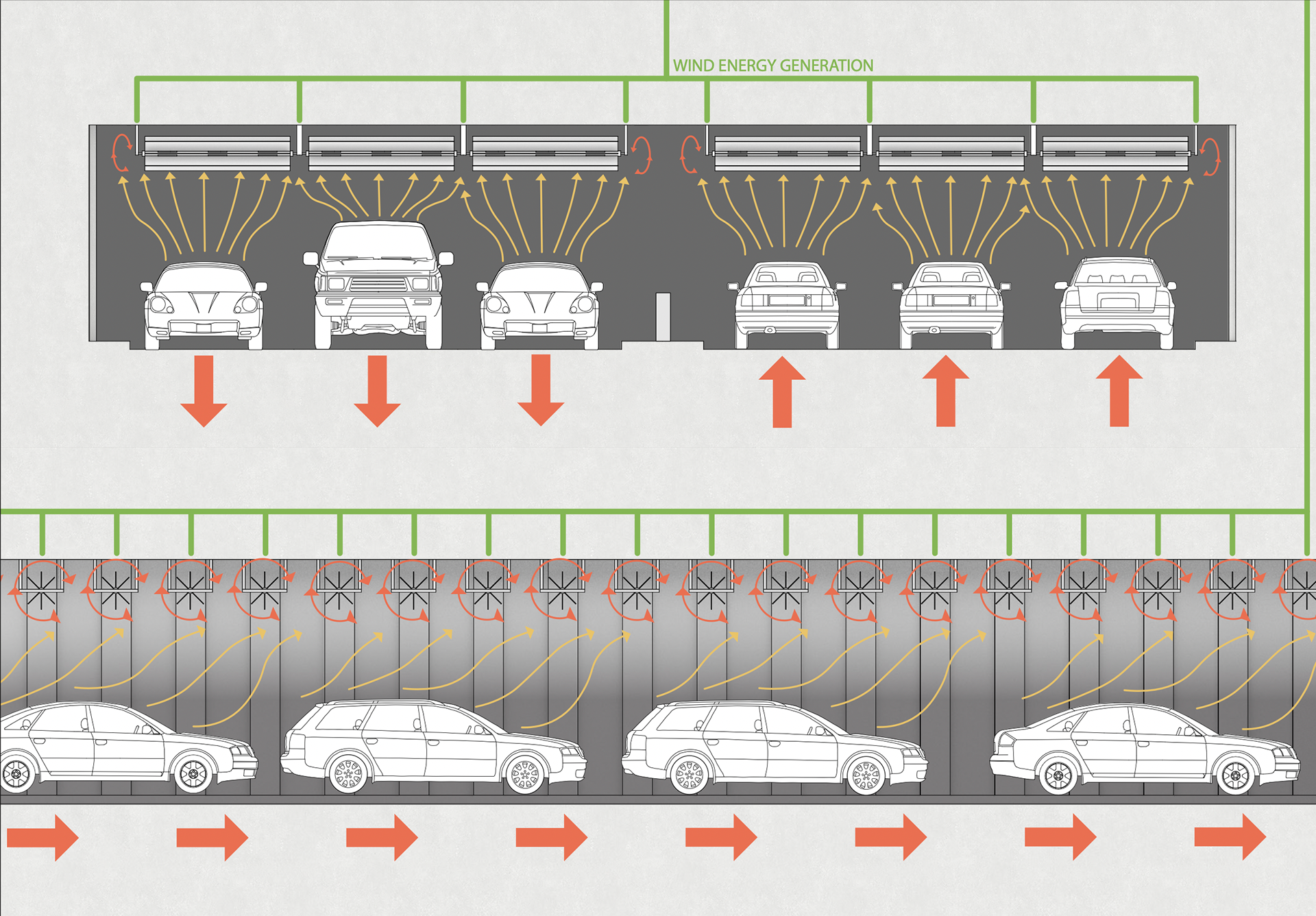

Energy Generation Diagram

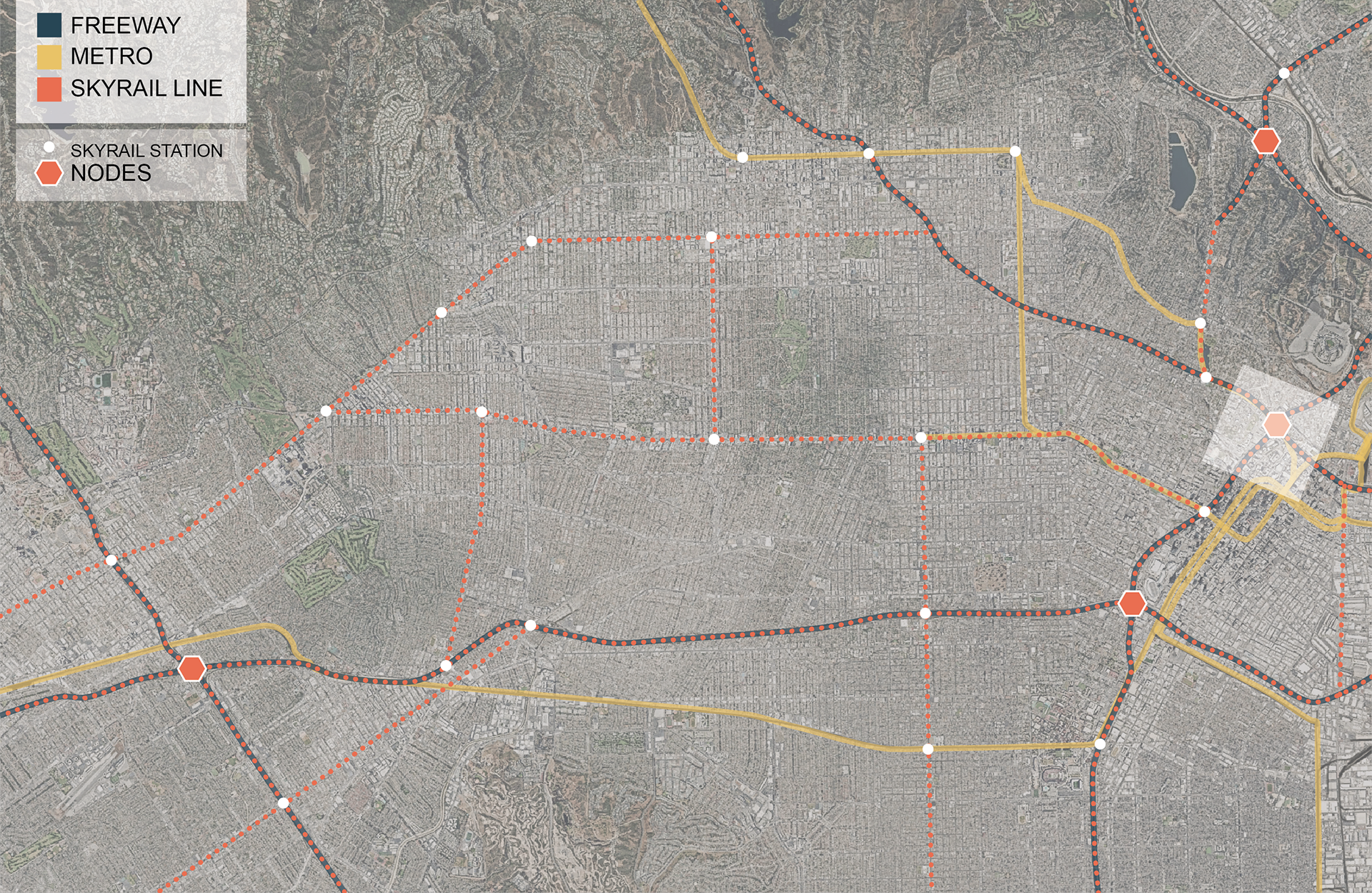

Skyrail Concept

Original Node Concept

Overal Node System Concept
II - Sector Design
Building upon the original concept design, my sector explores the ideas of freeway coverage, transportation, and circulation even further. The Stratum will be a central catalyst for a proposal covering the LA freeway system in tunnels, supporting elevated pedestrian walkways, mixed-used development, and a new Skyrail system. This new system will hope to drive the freeways as not a system of separation but a system that propagates connection and community.

Large Scale Section

Overall Concept Plan

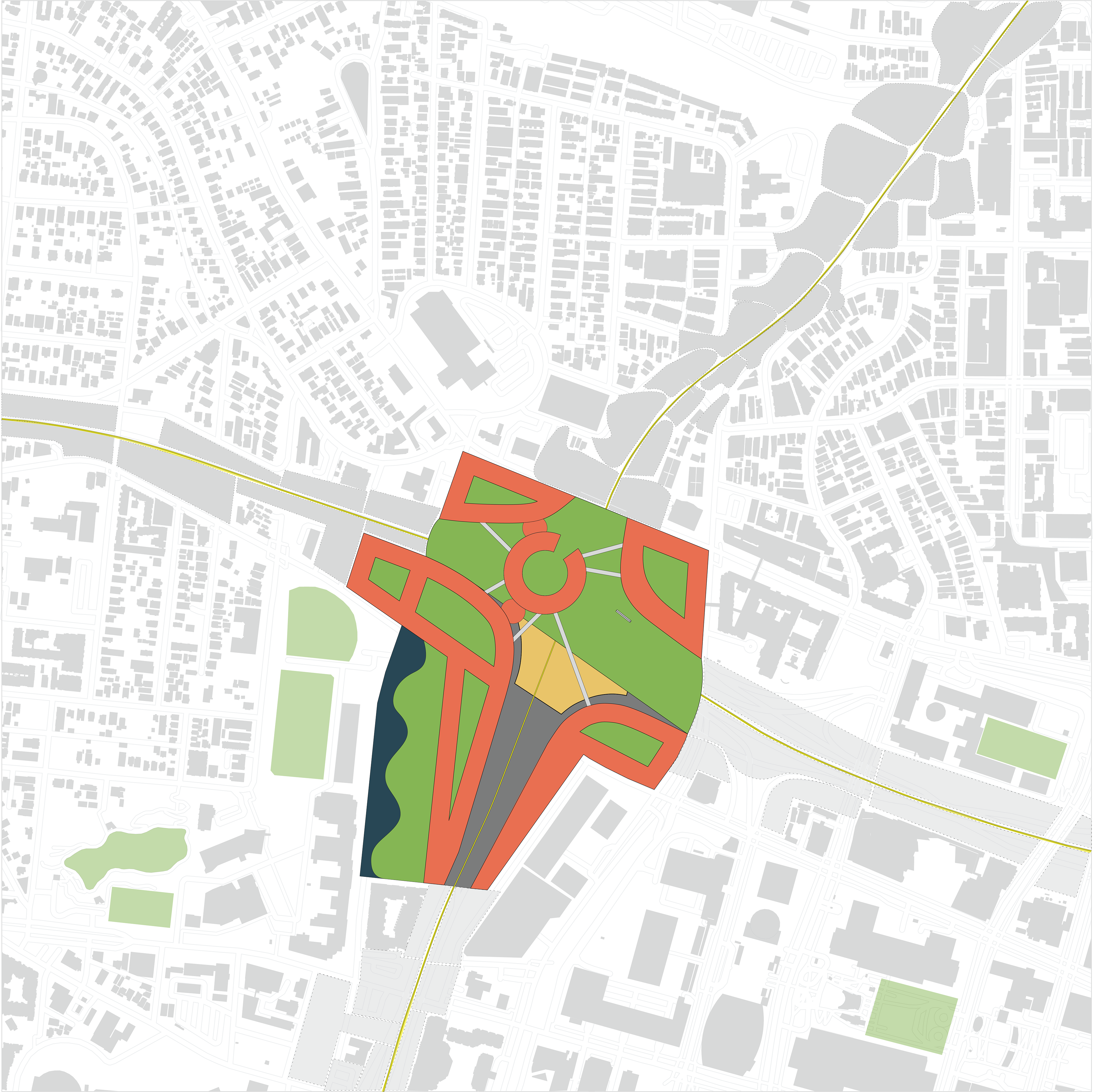

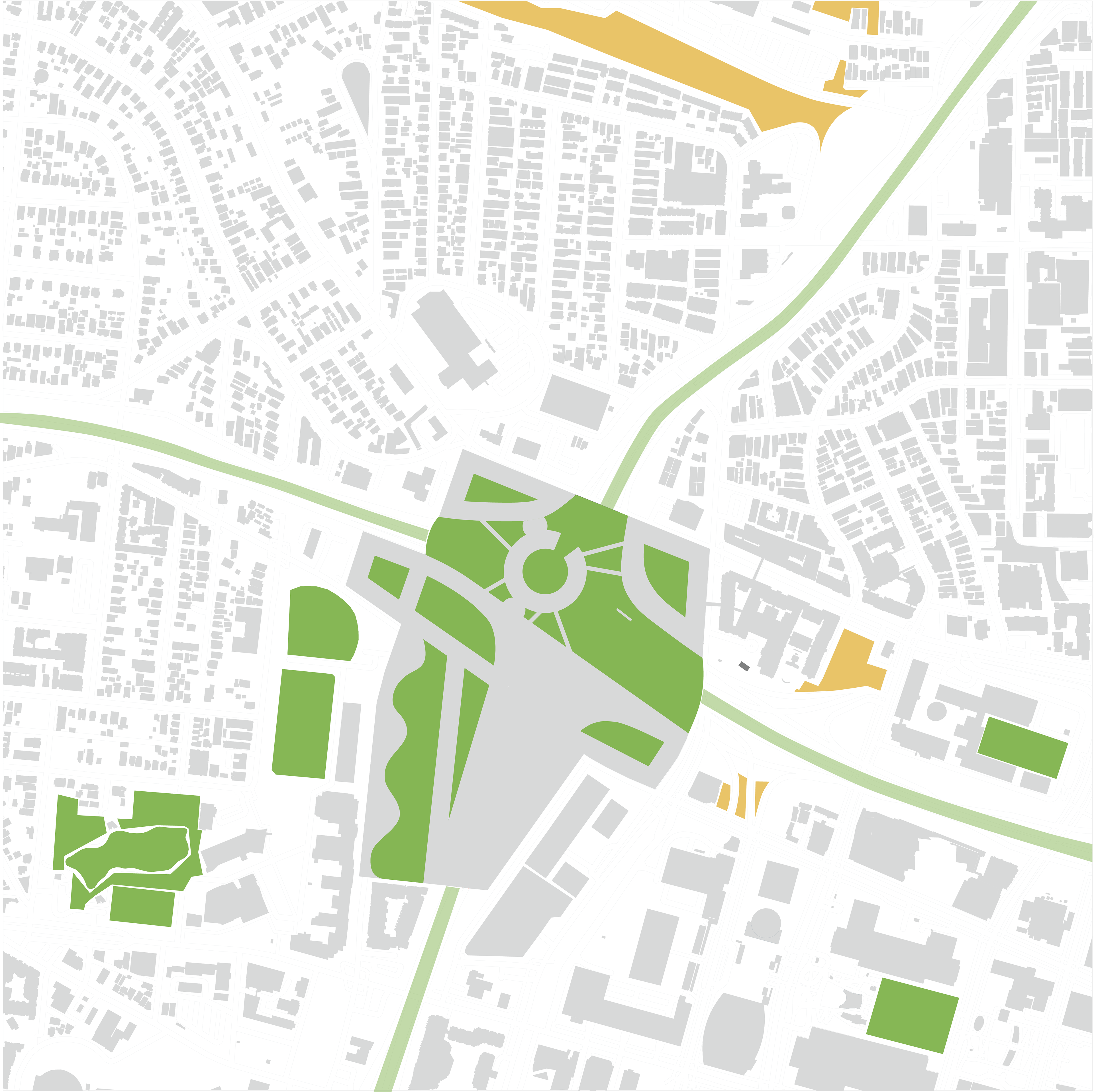

Open Space Diagrams

Present

Proposed
Circulation Diagrams

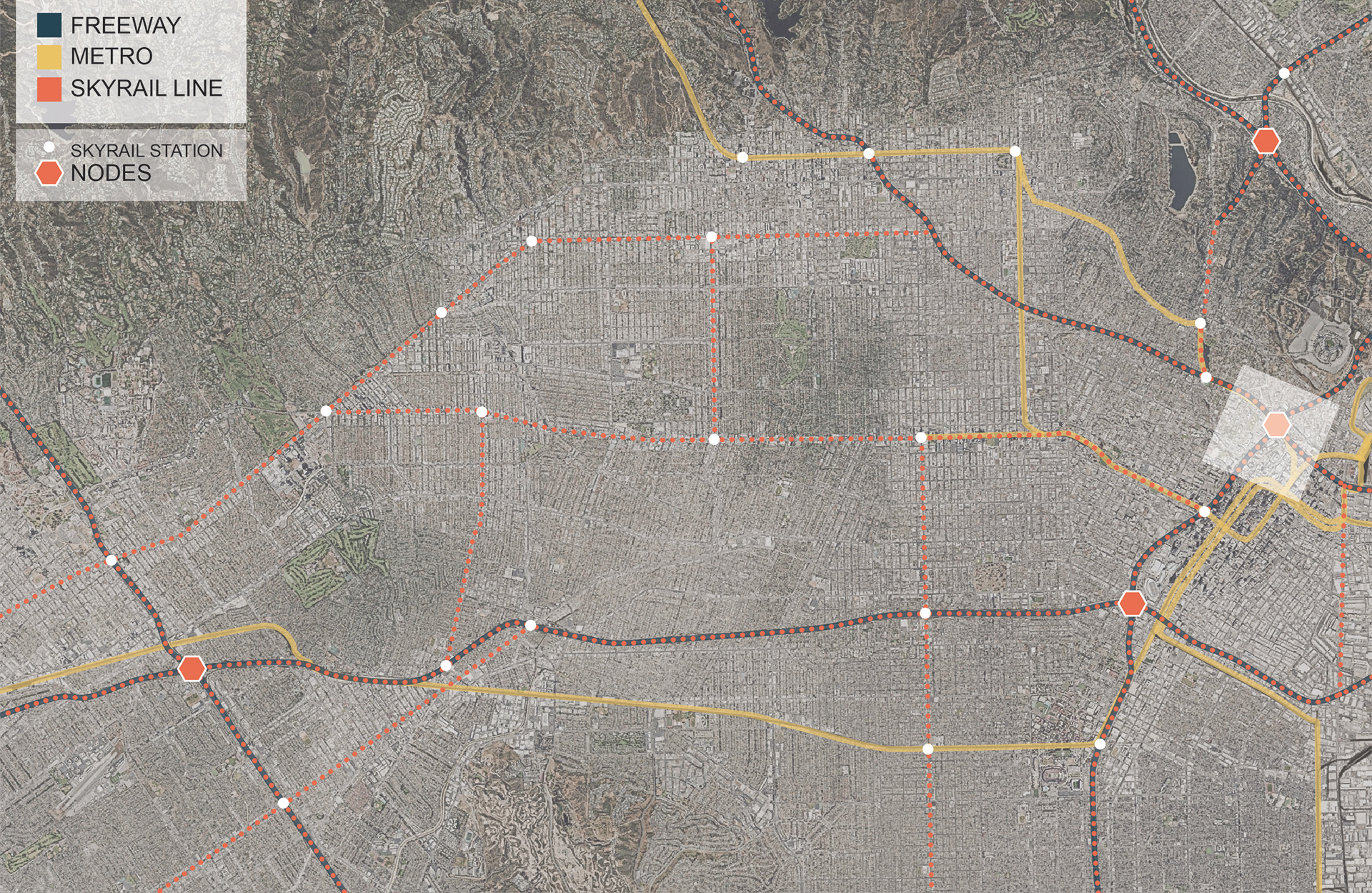

Transportation Map

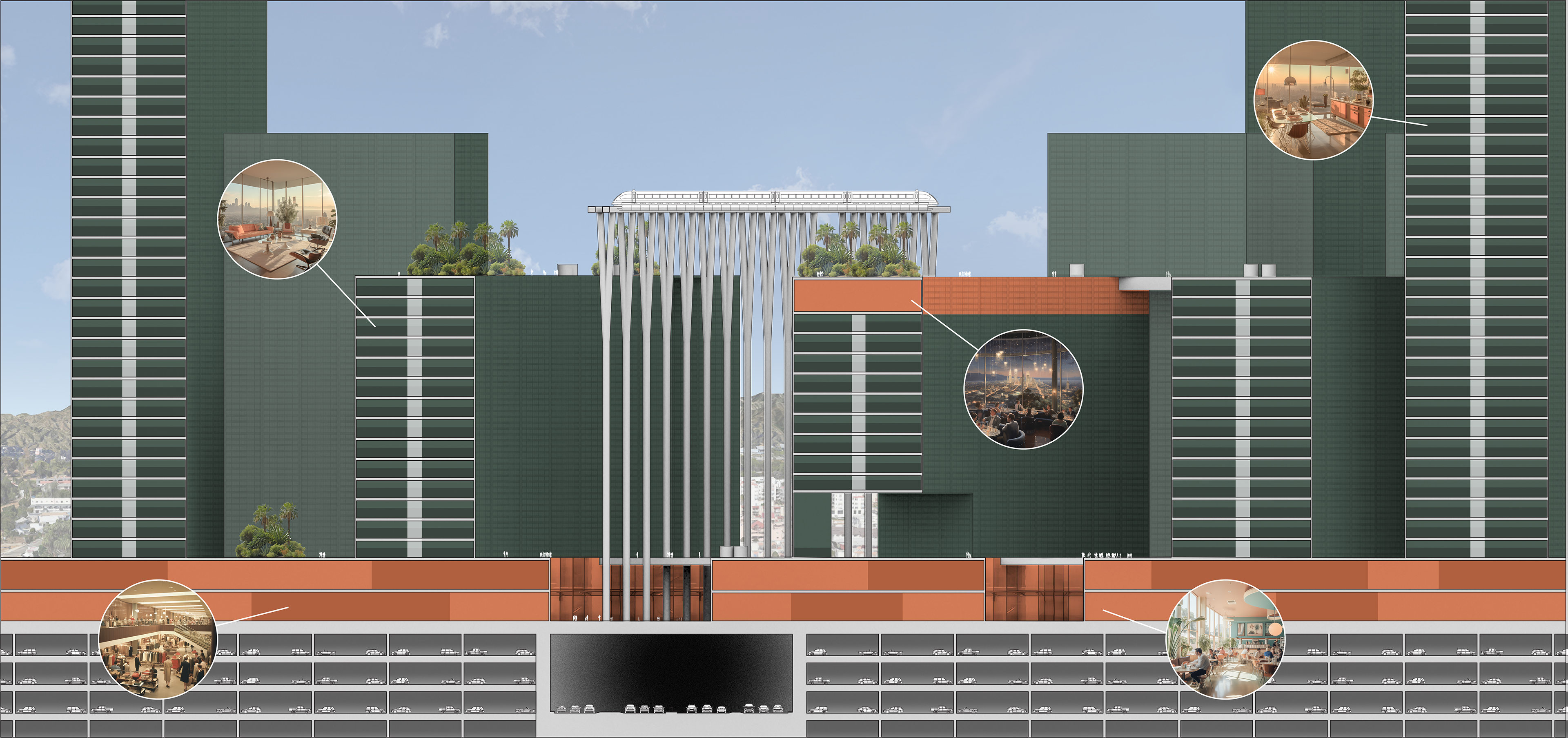

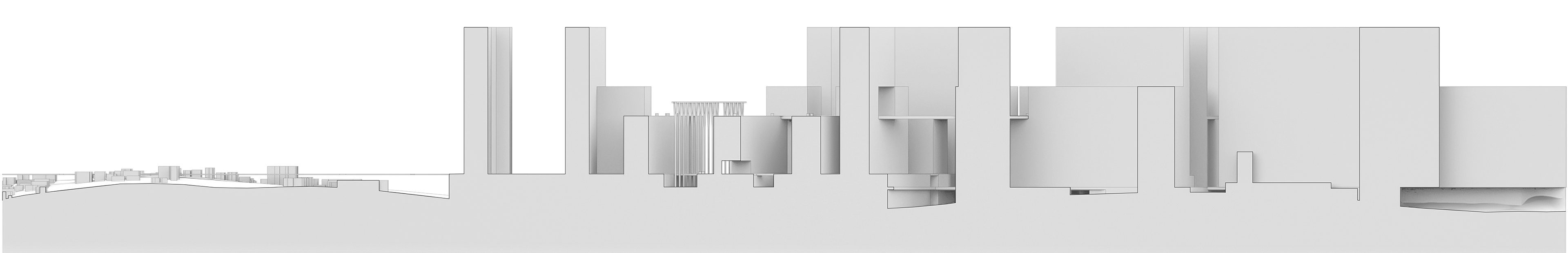

Overall Section

Perspective

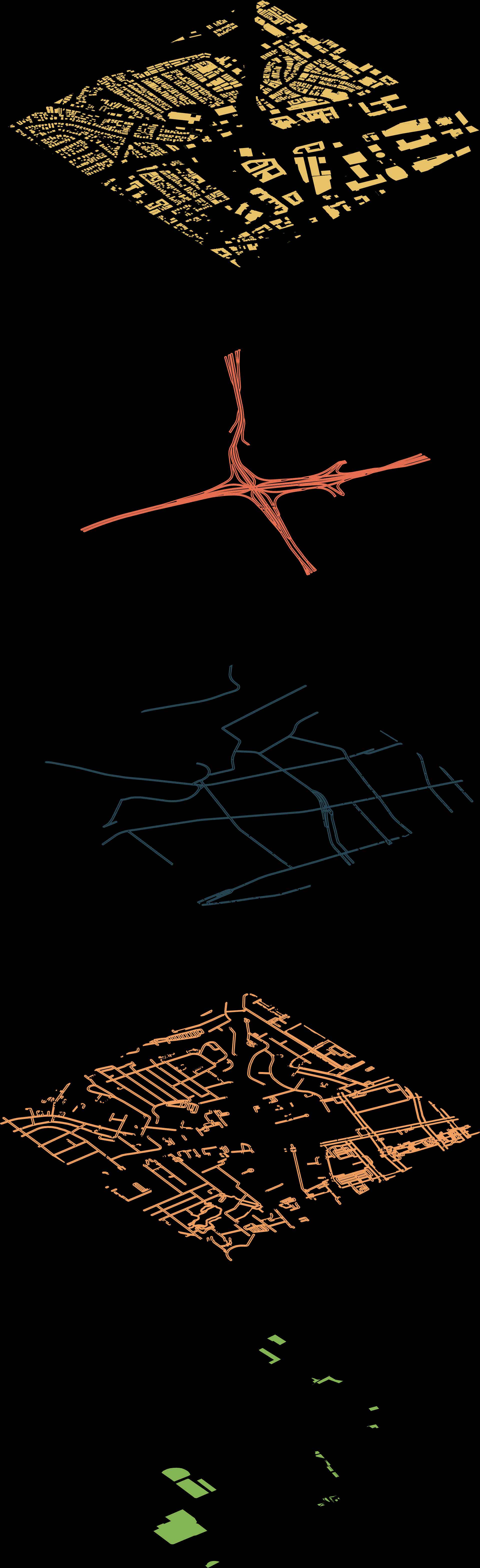

Transect Axon

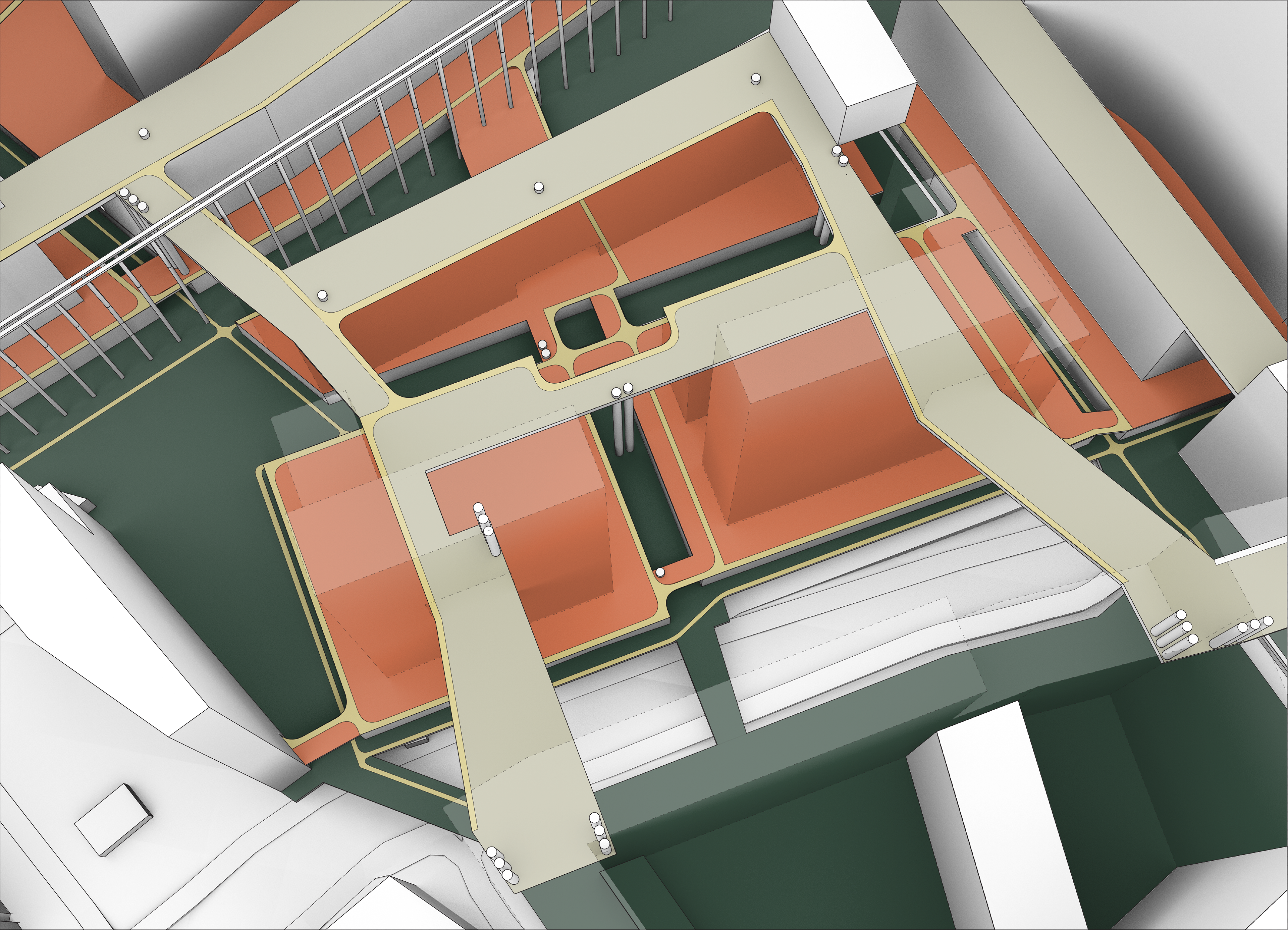

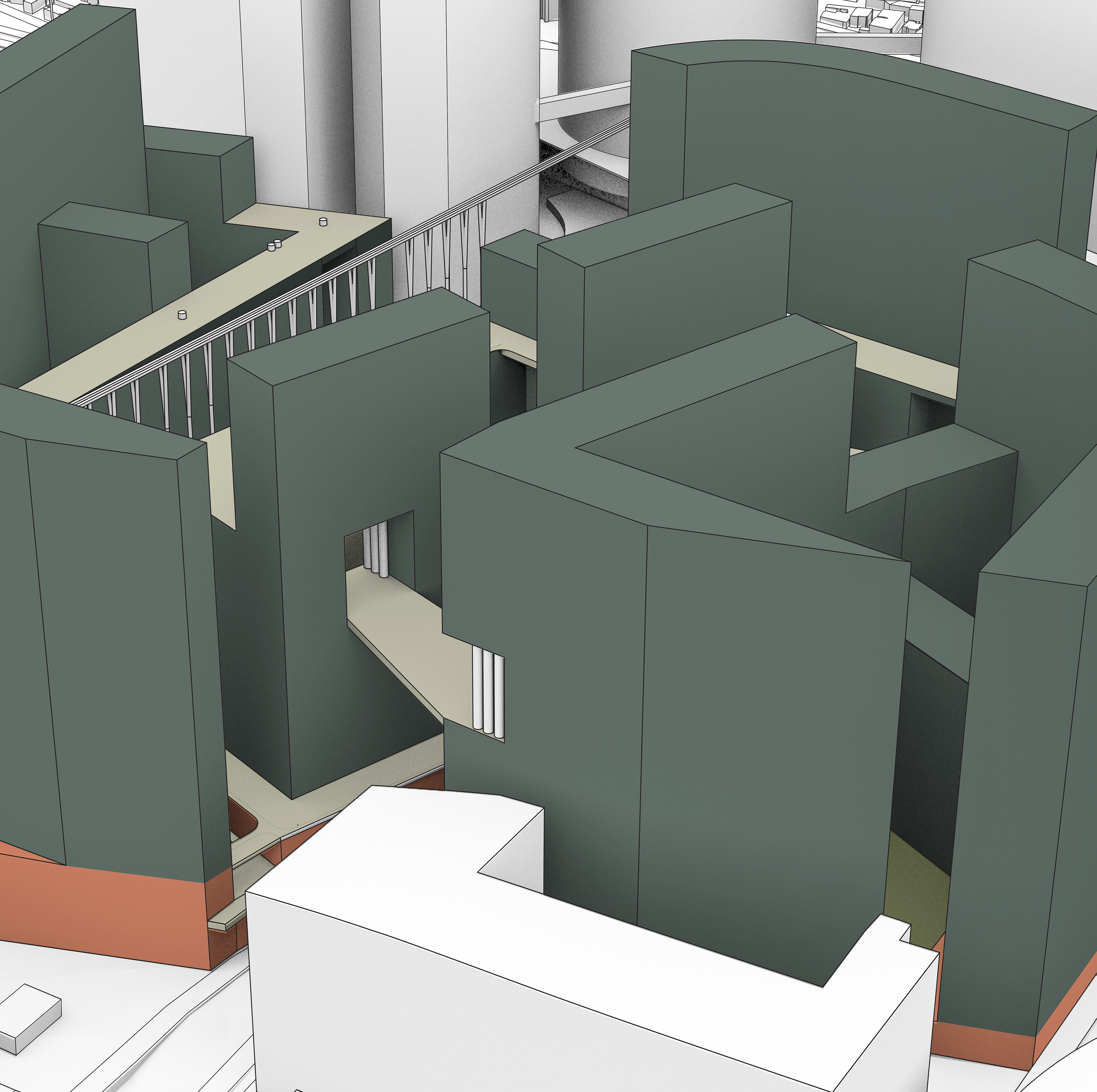

Public Realm Perspective

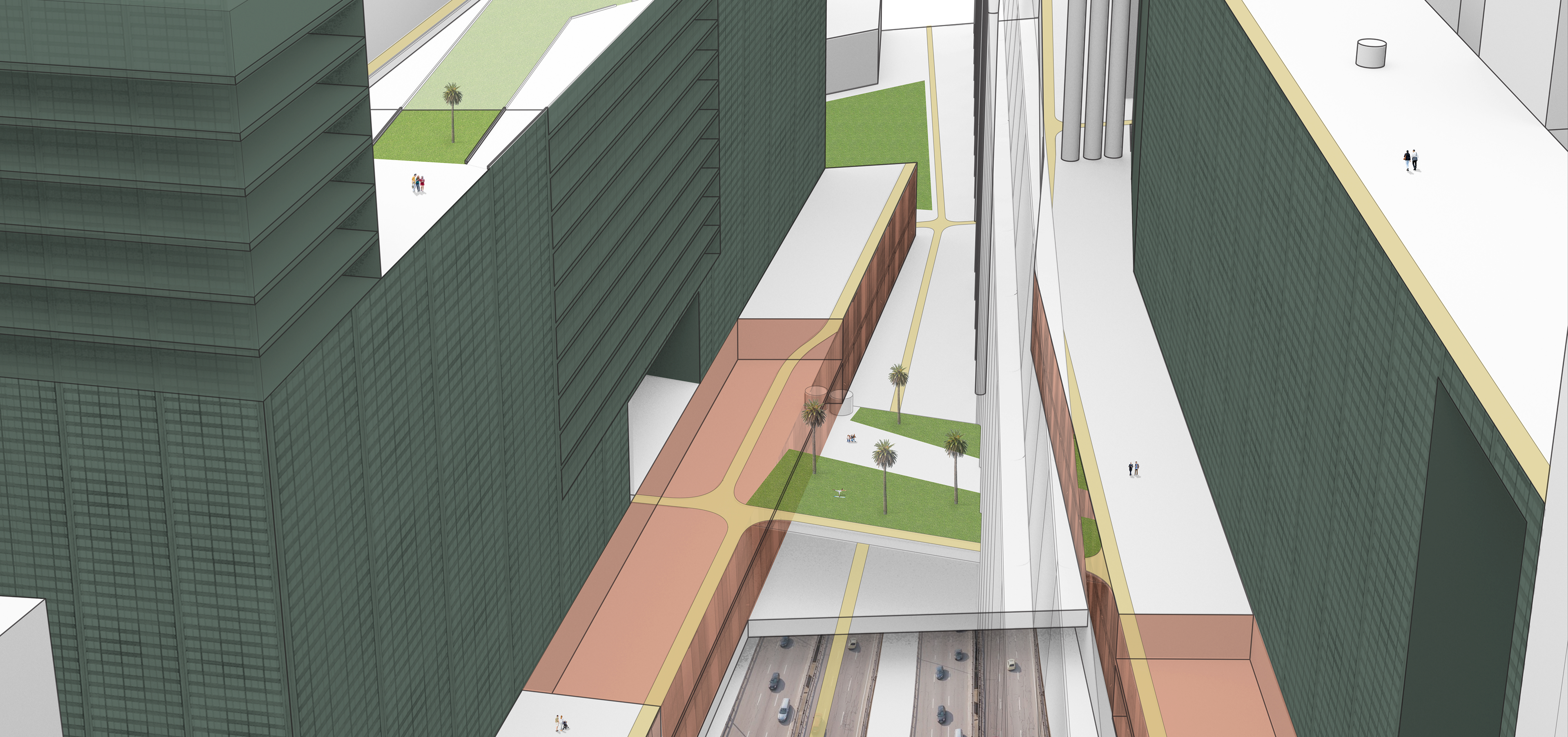

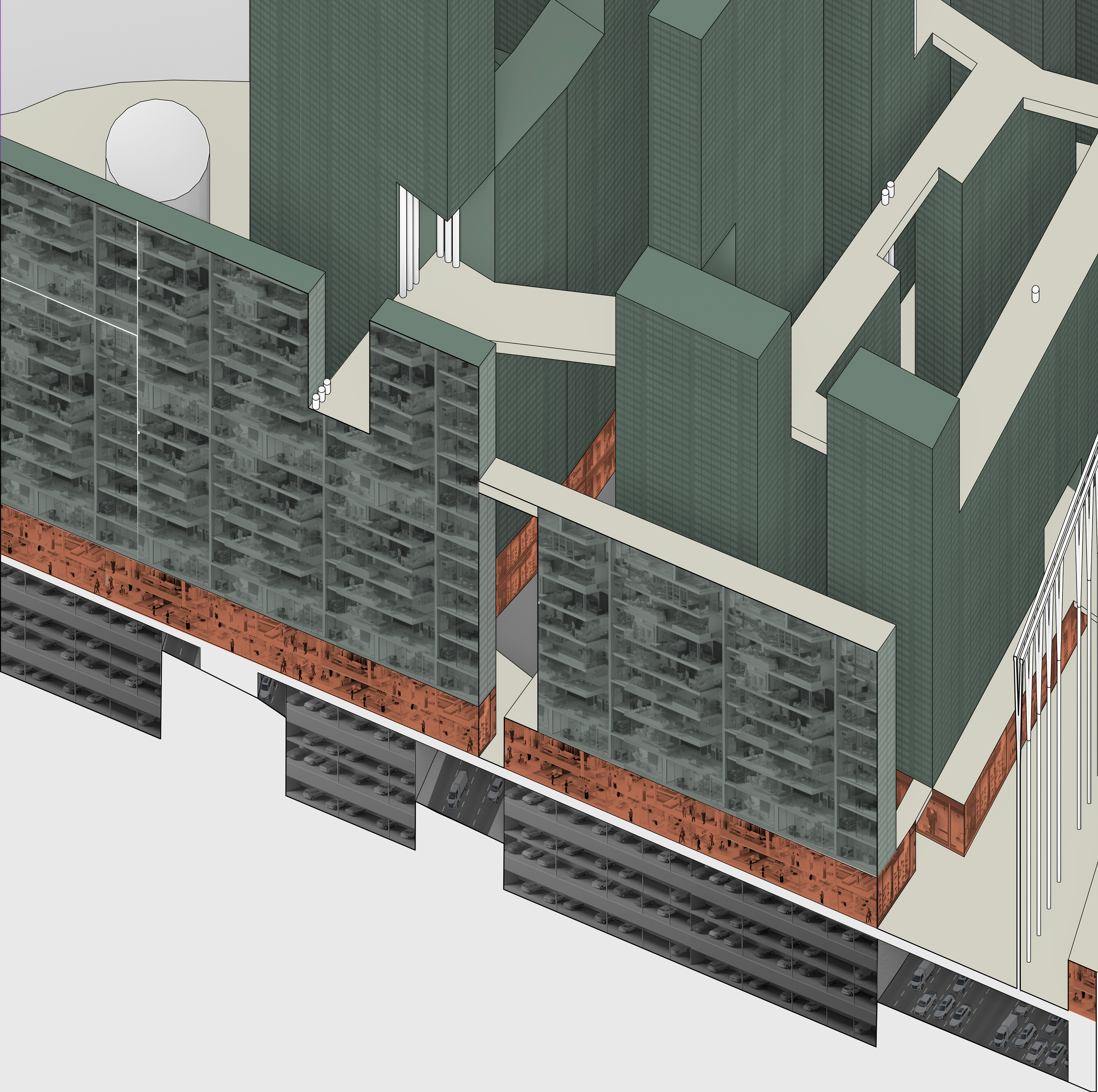

Perspective Section

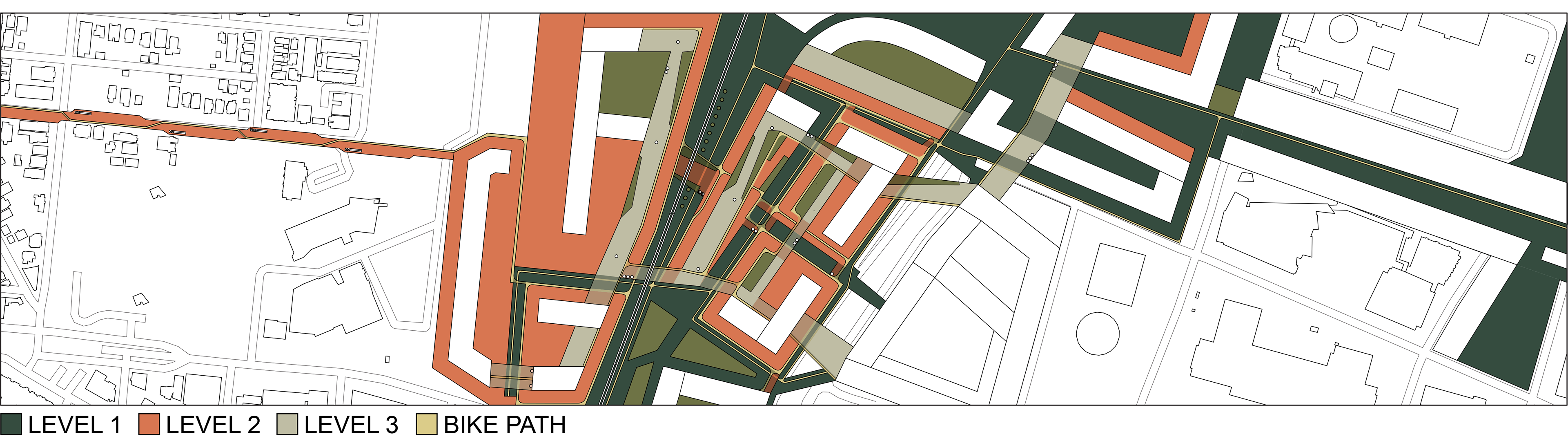

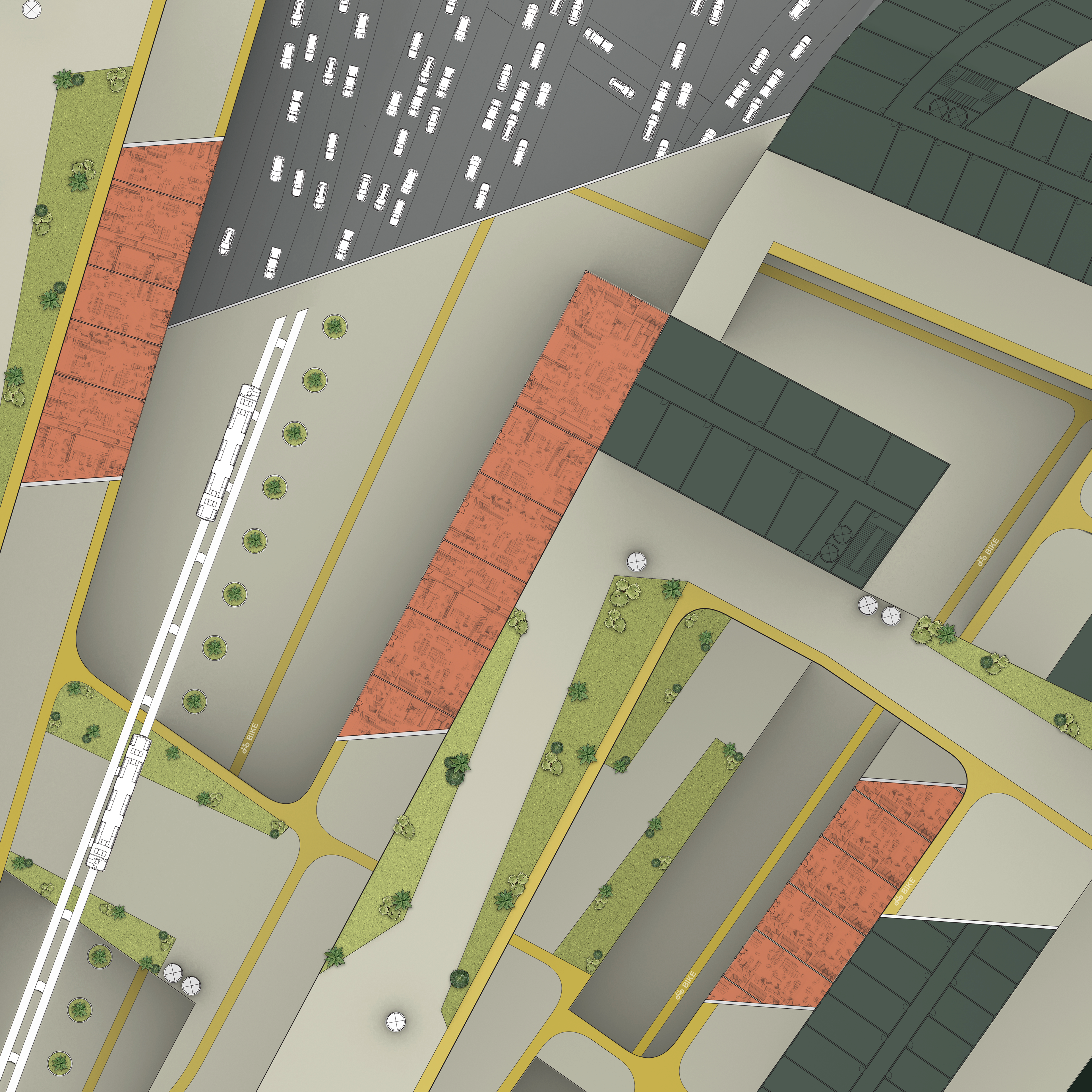

Floor Plans

Ground Level

Upper Level

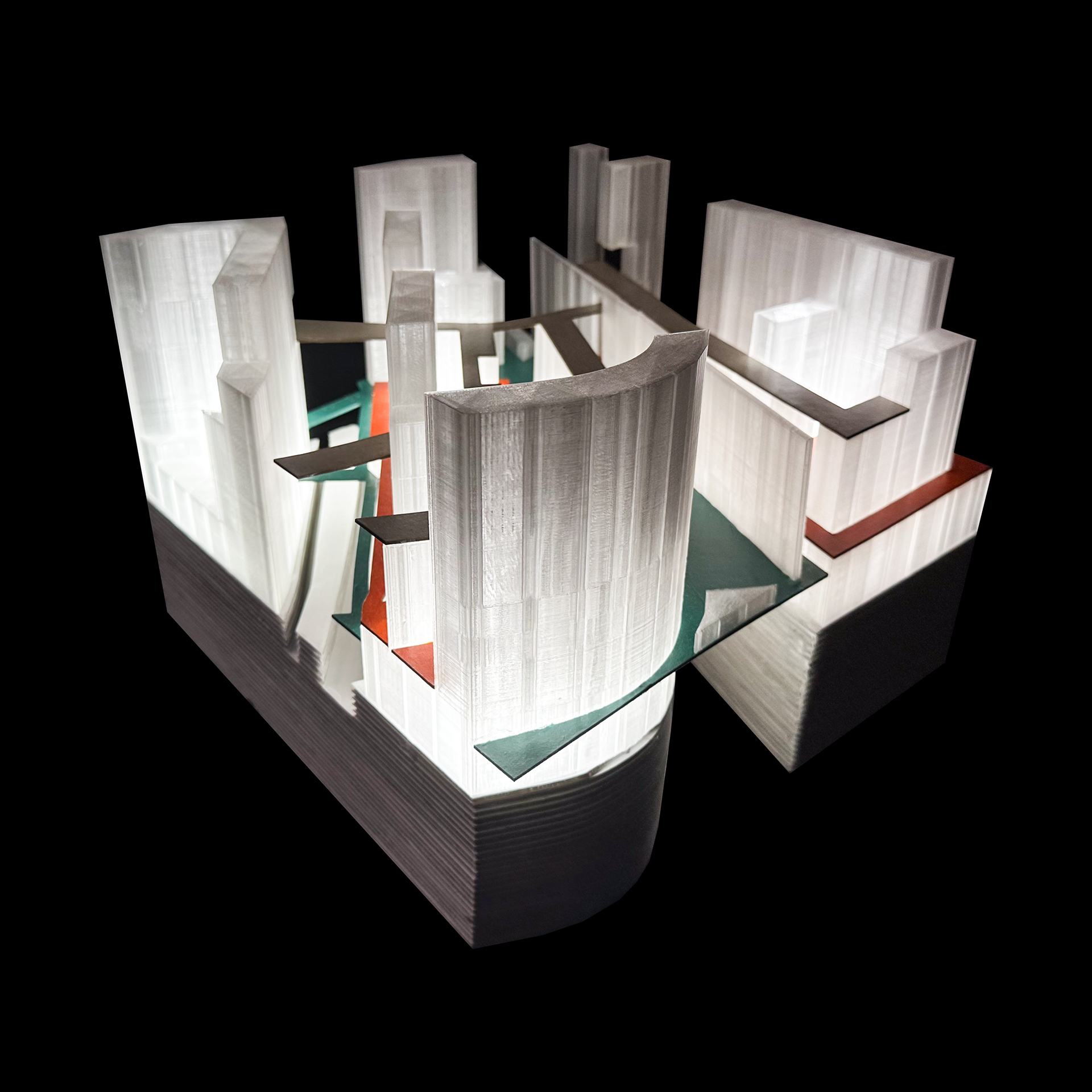

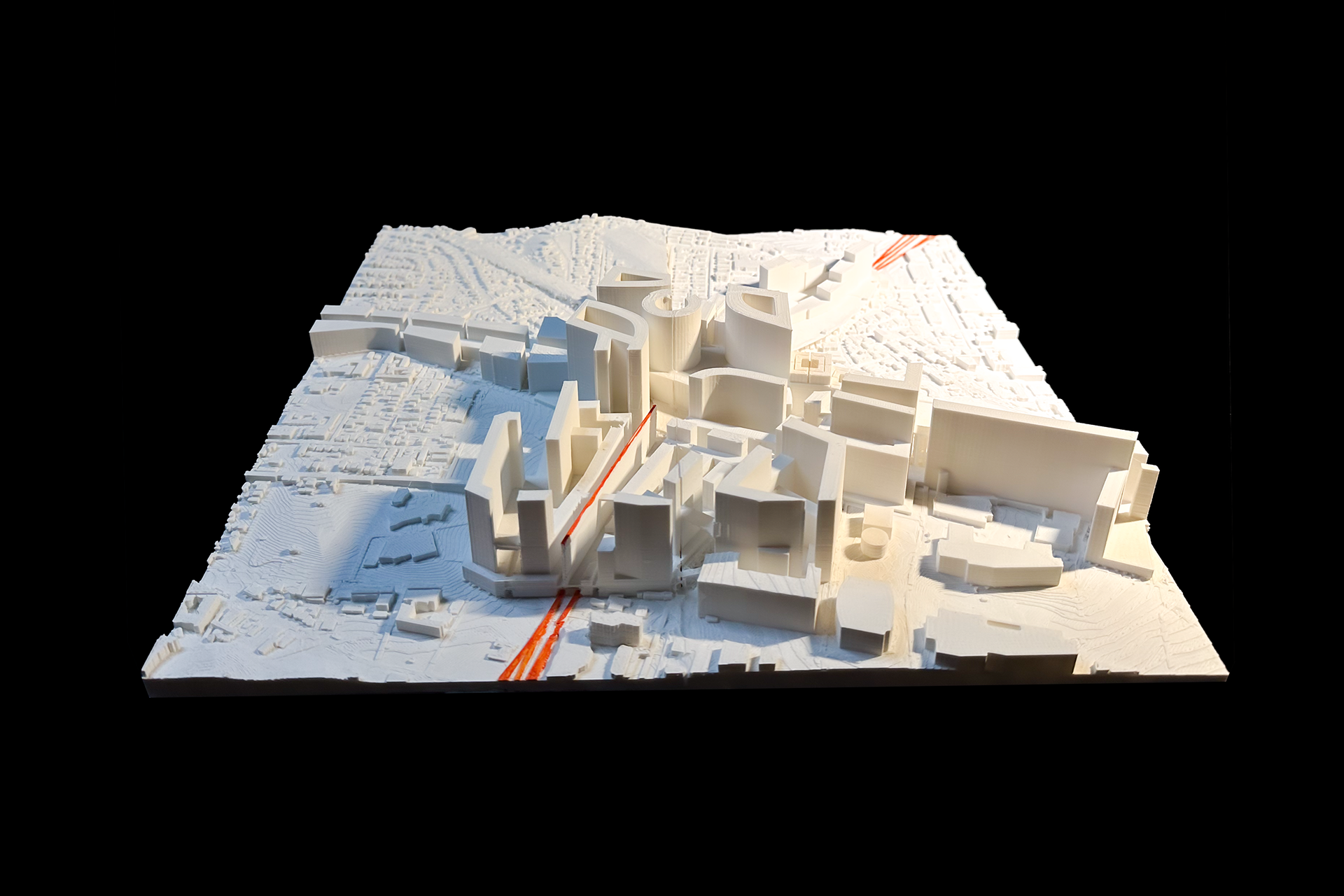

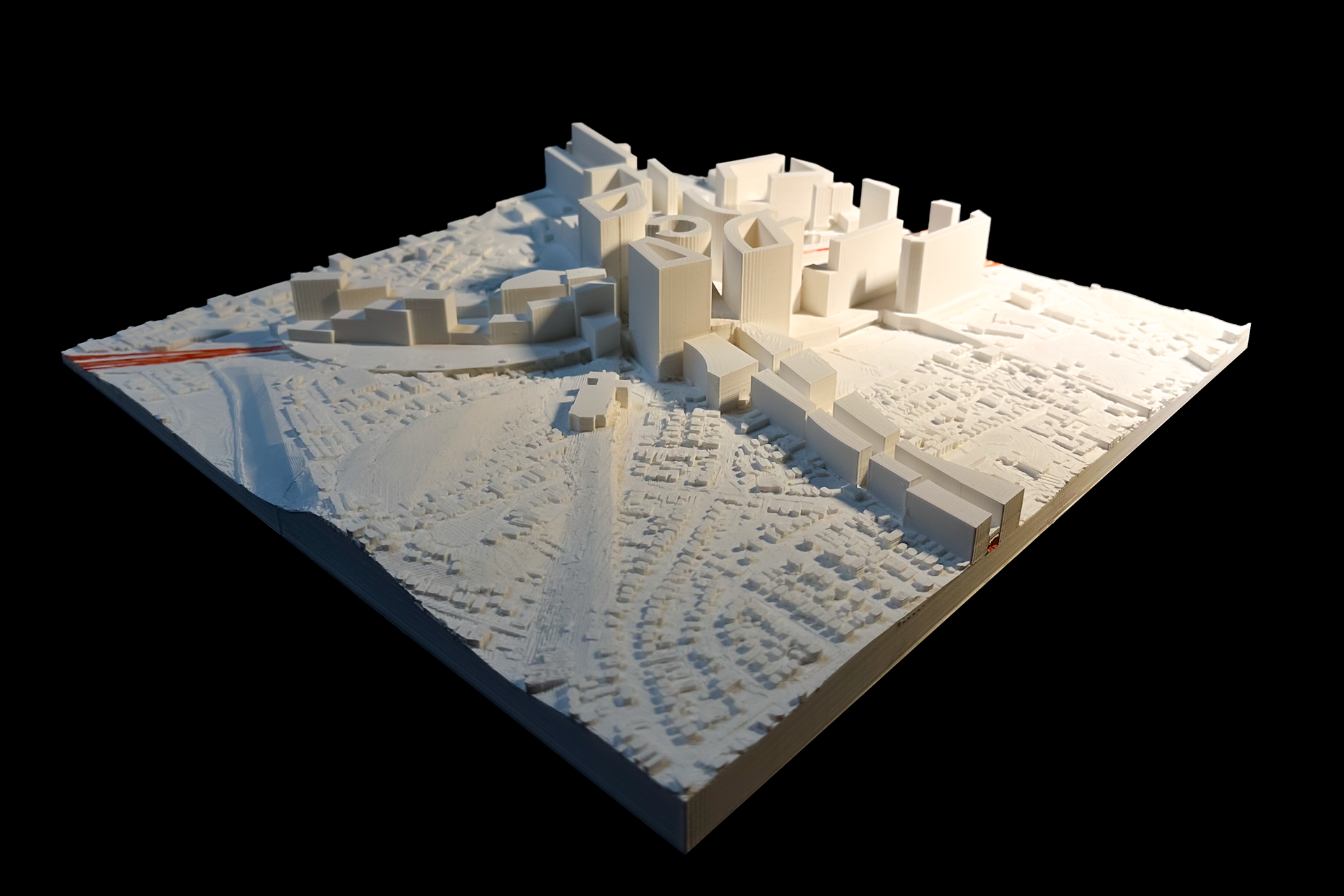

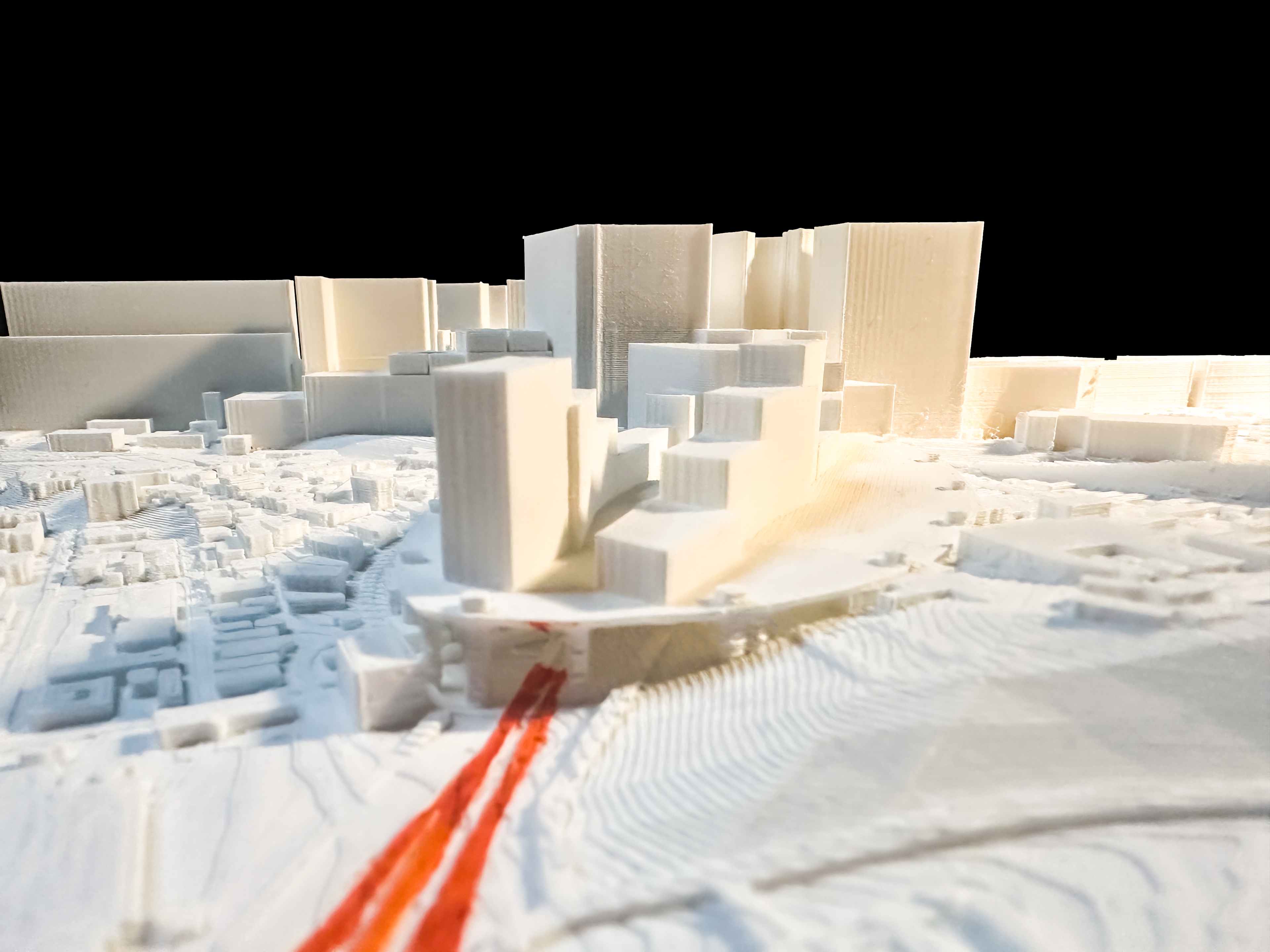

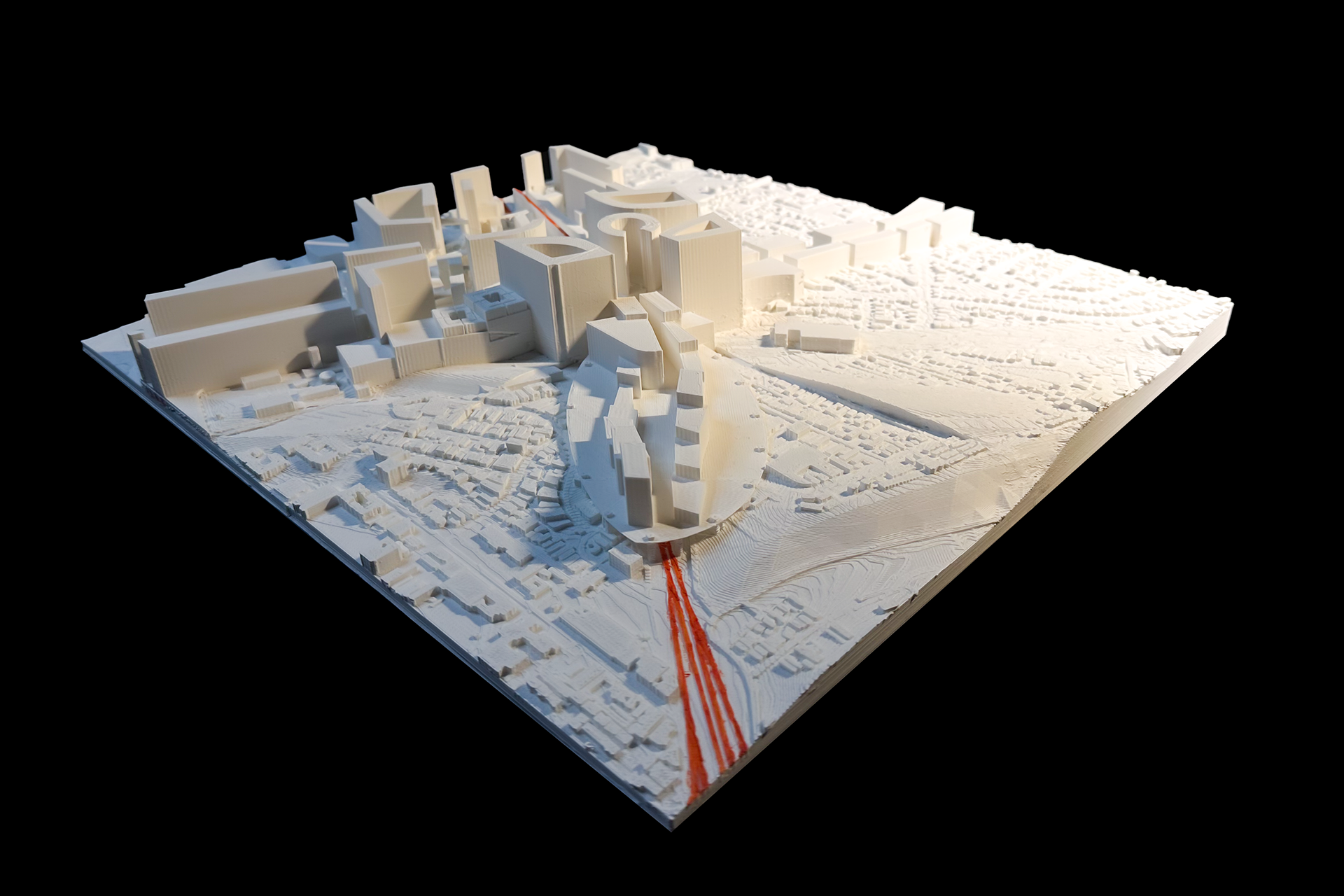

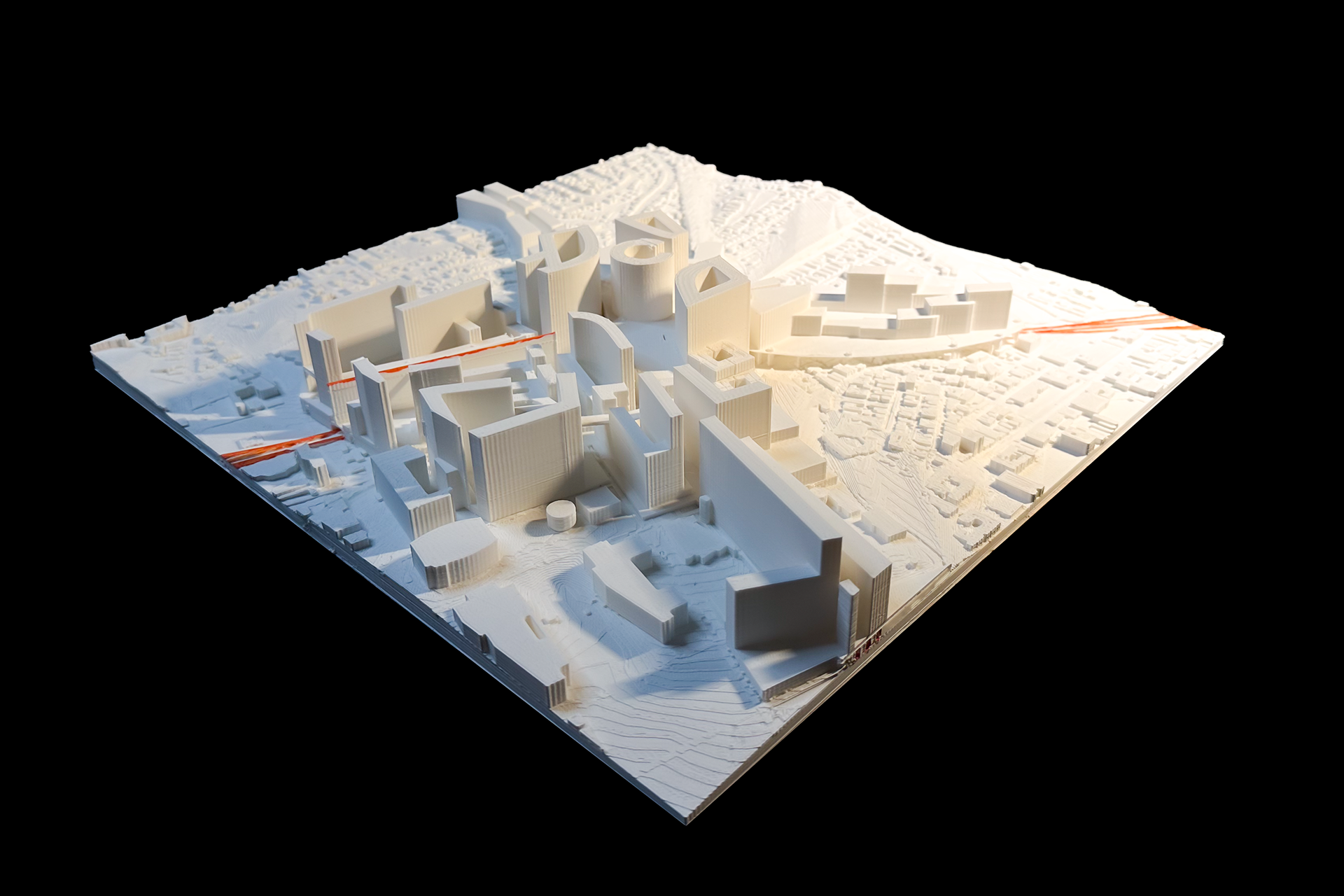

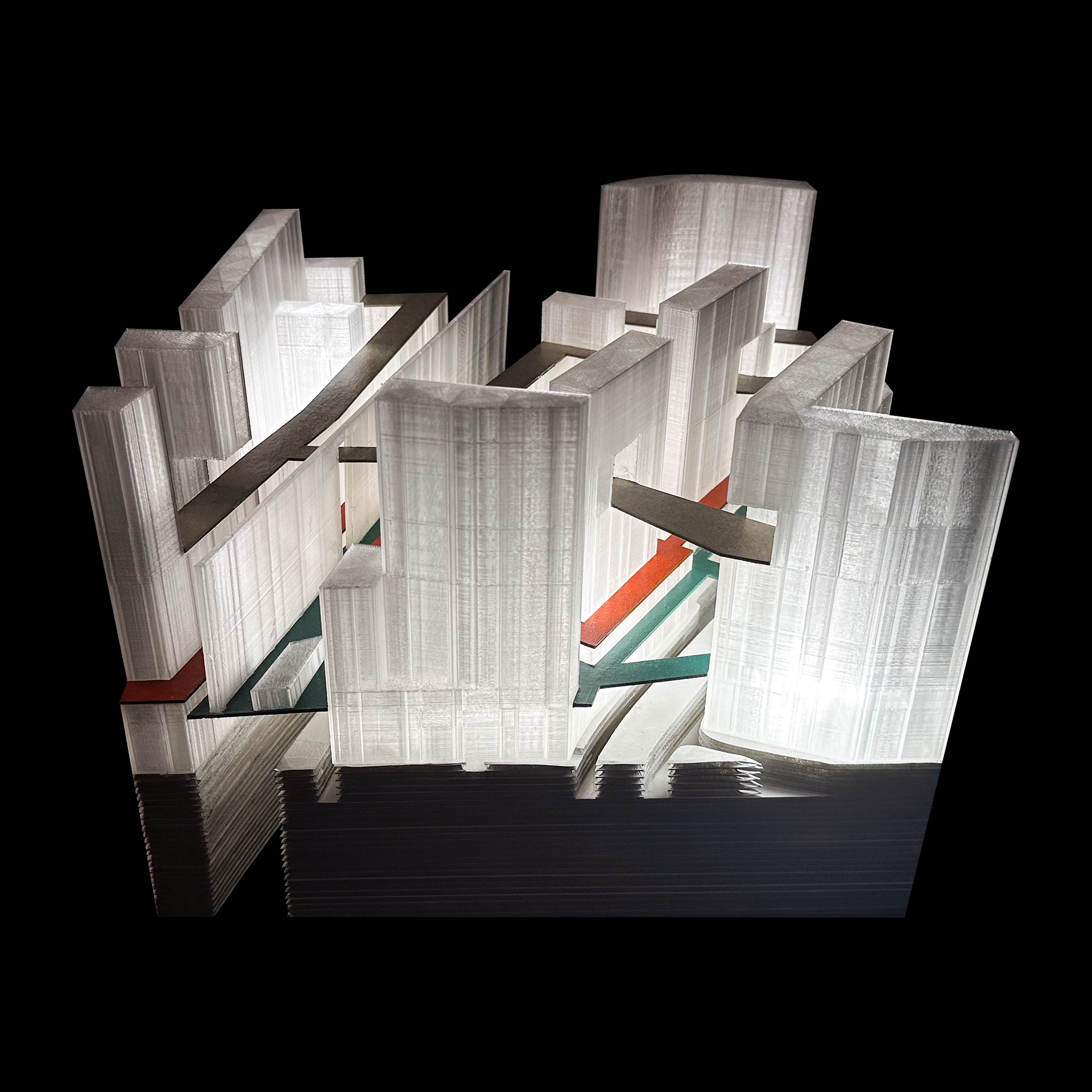

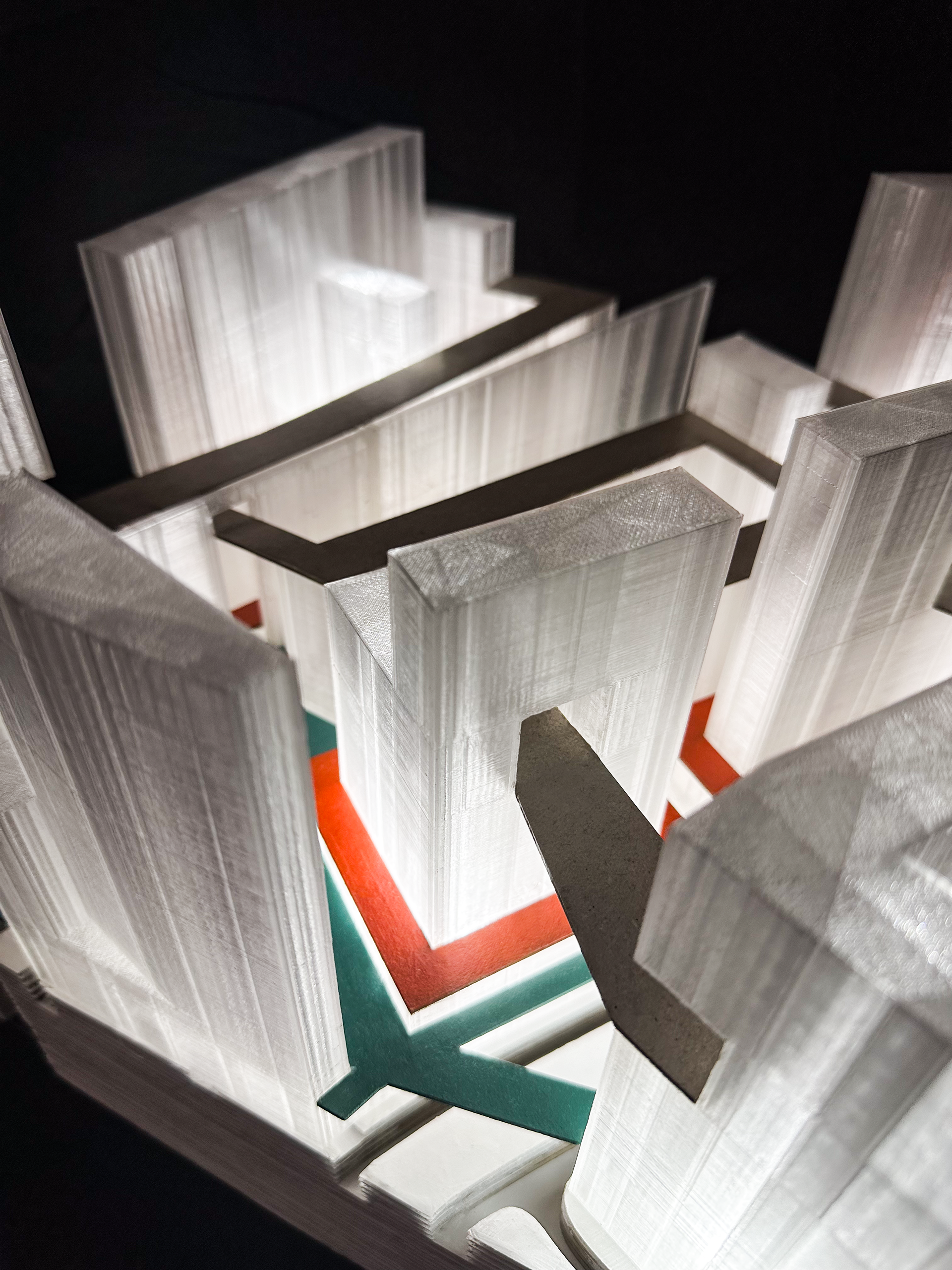

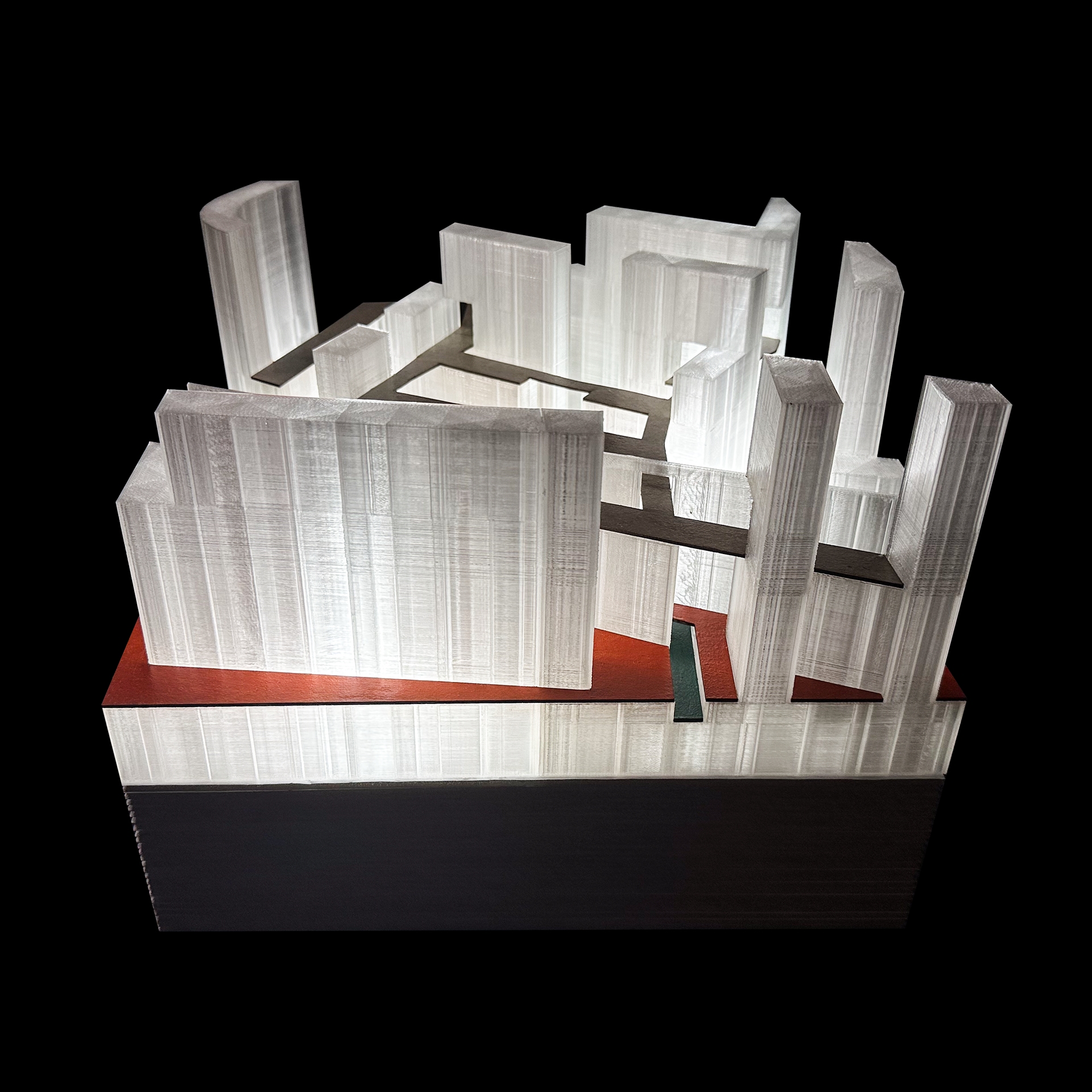

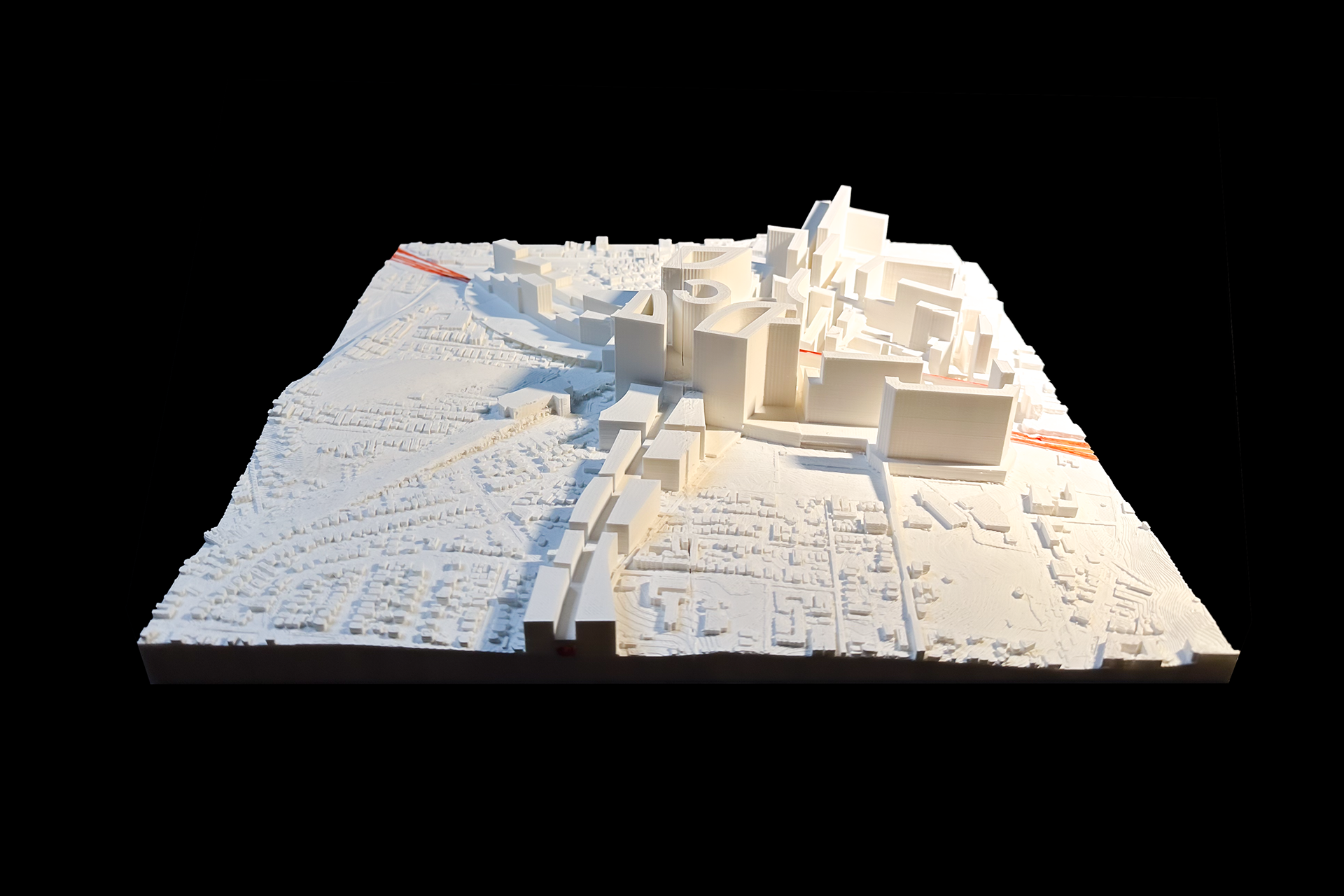

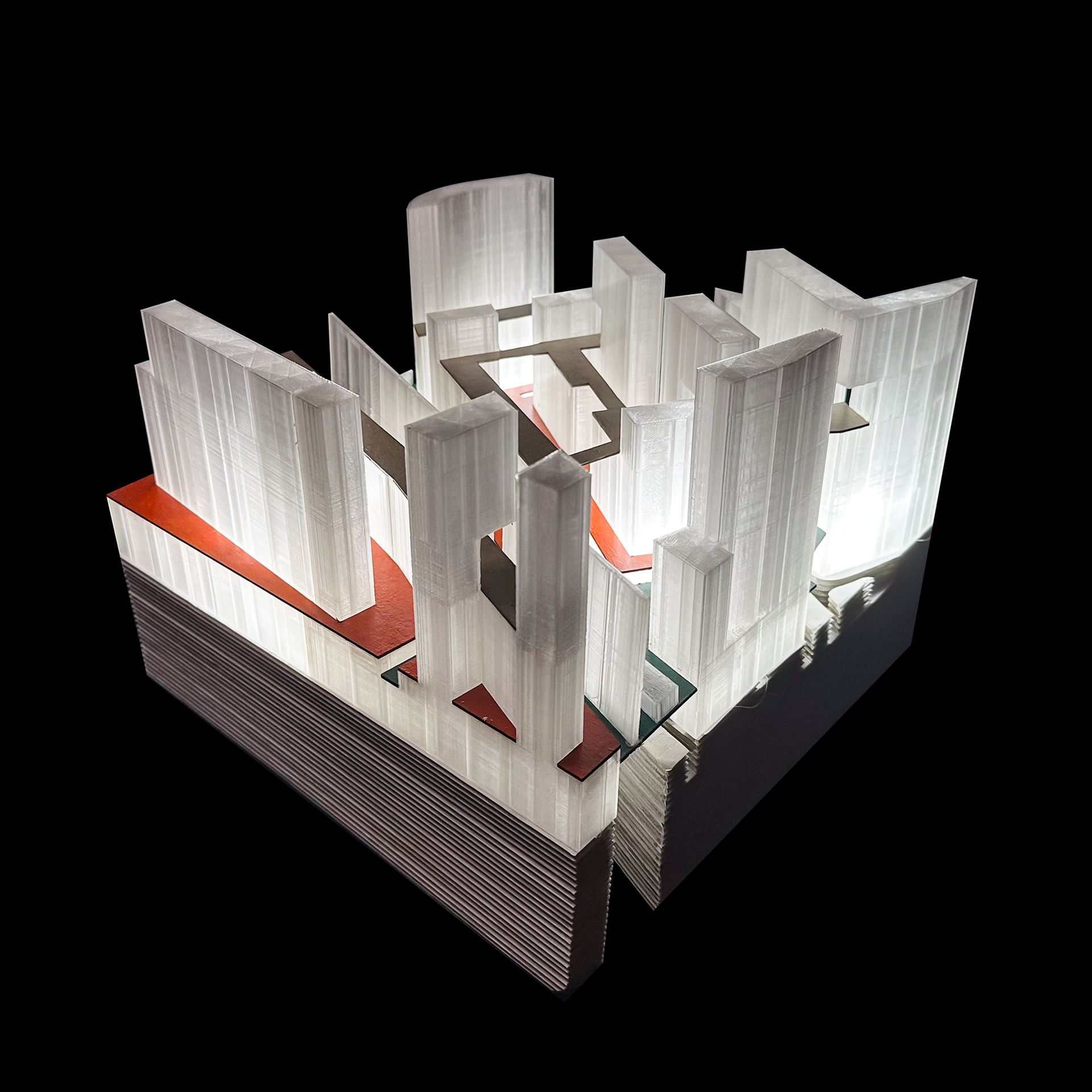

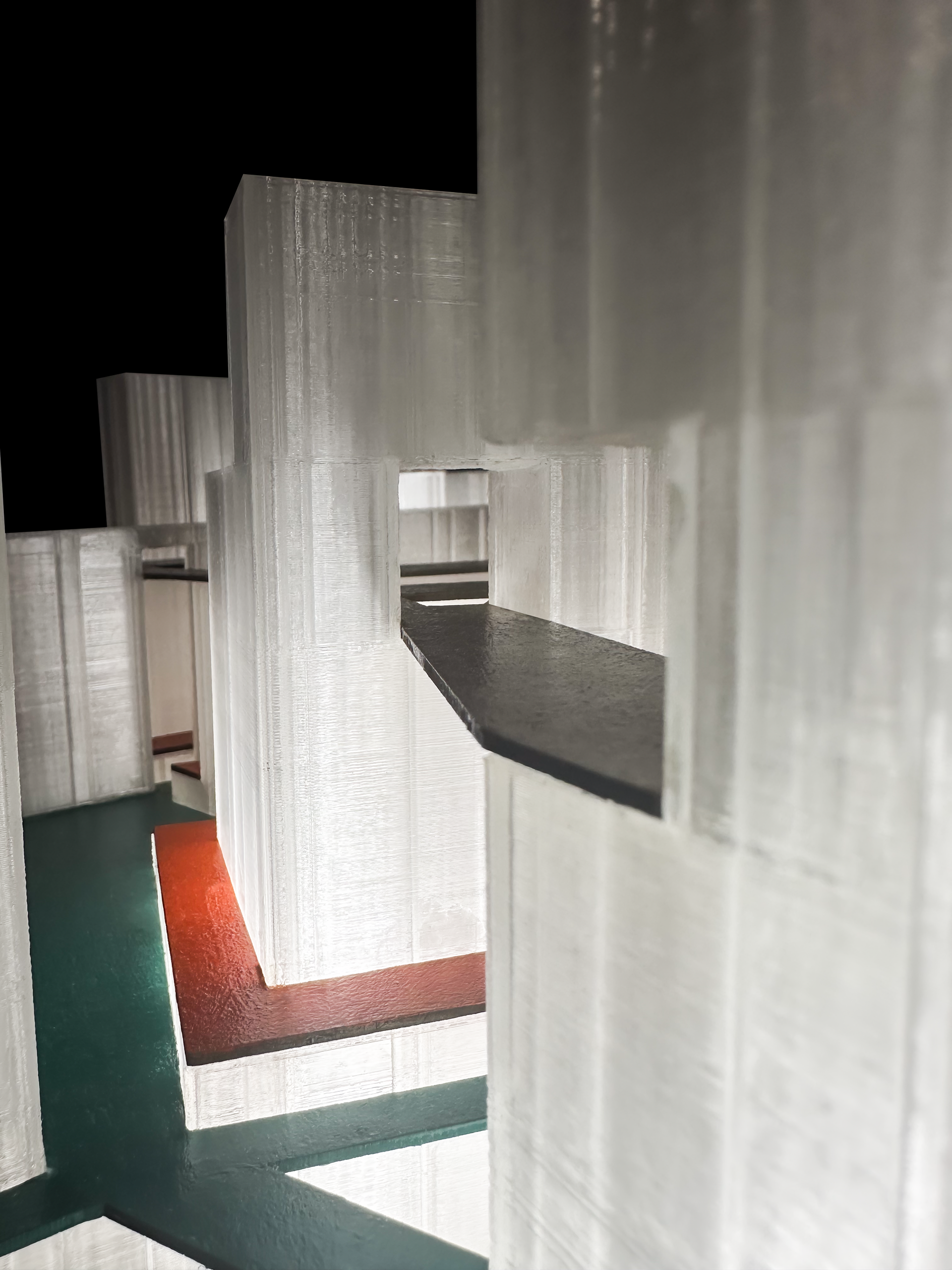

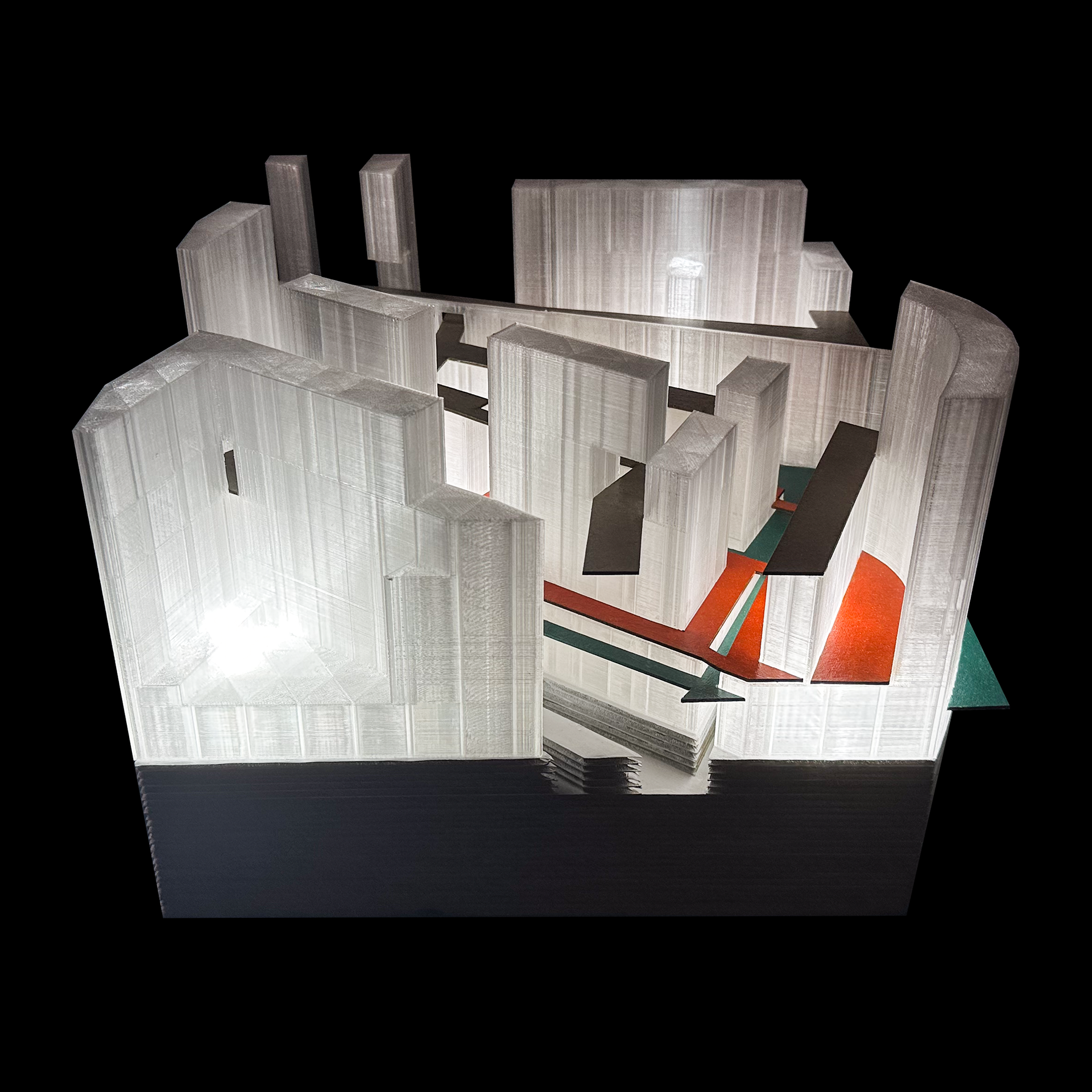

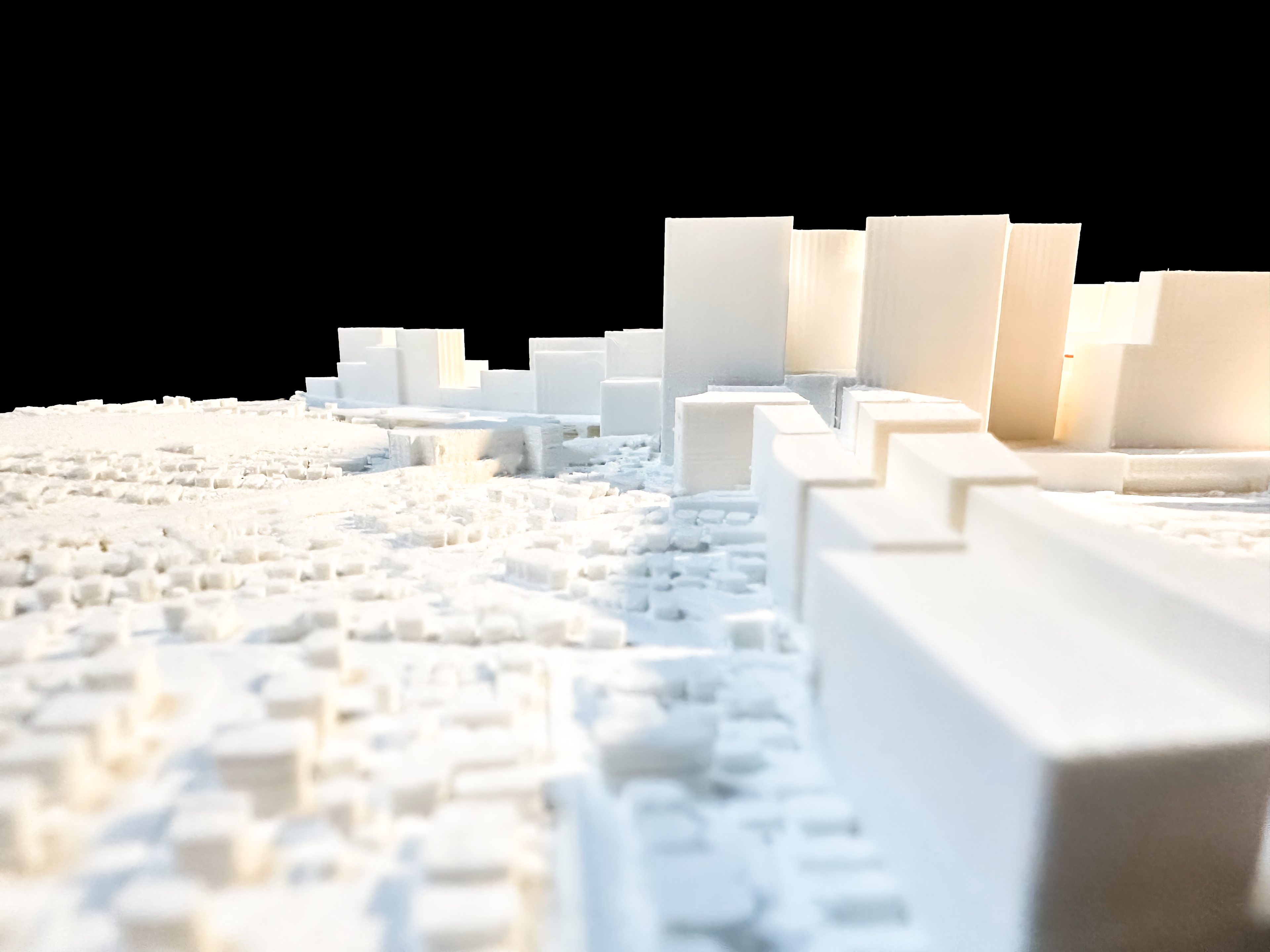

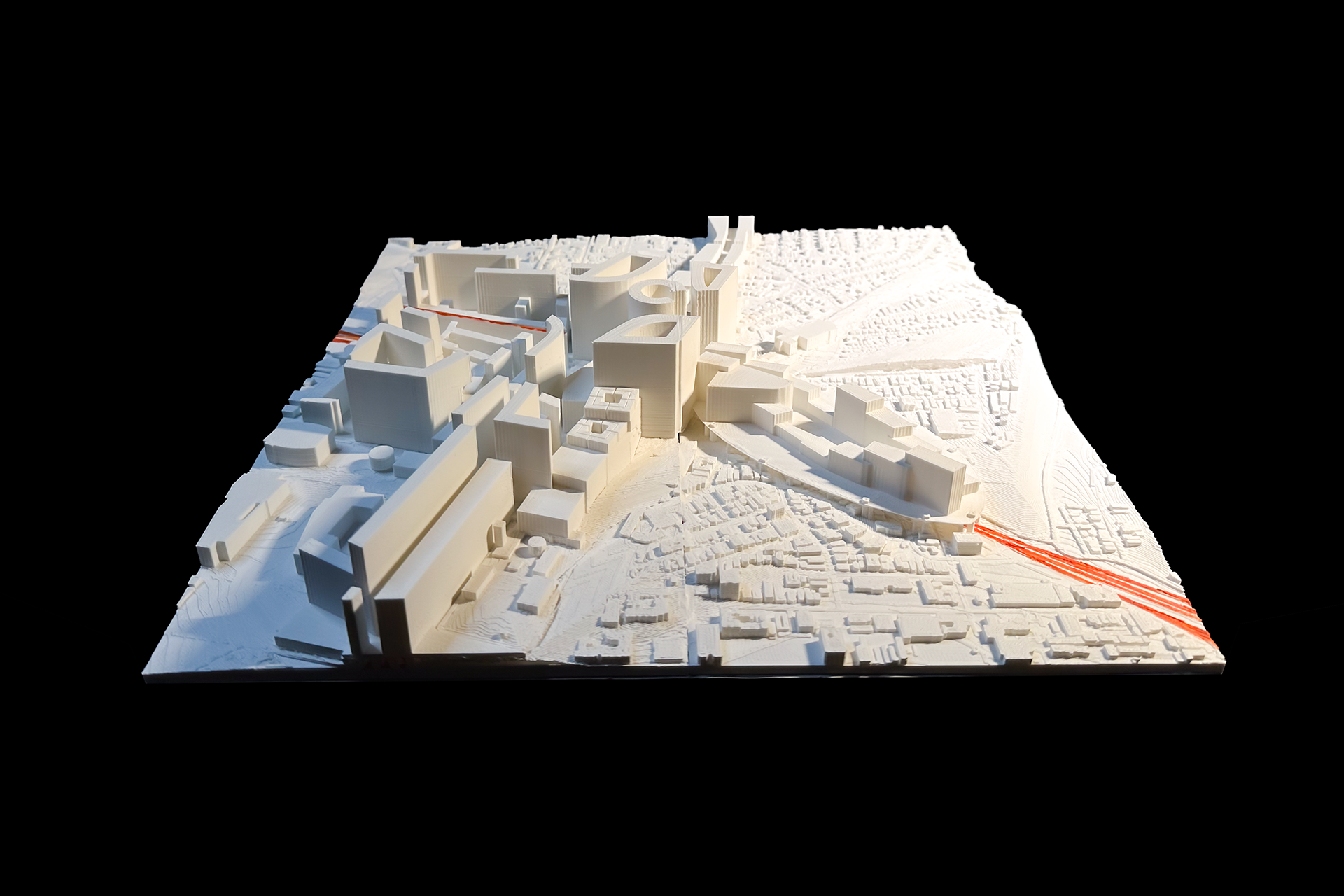

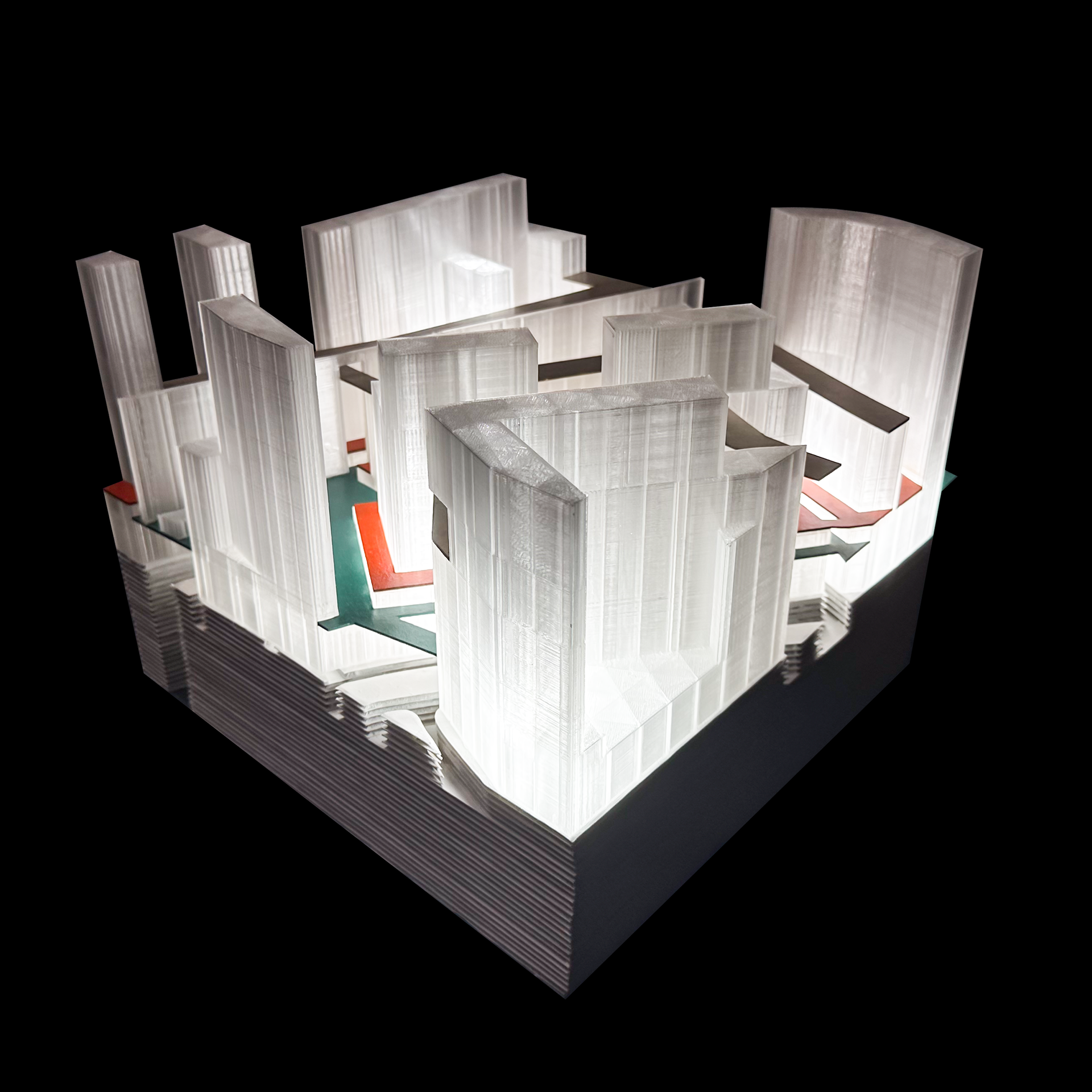

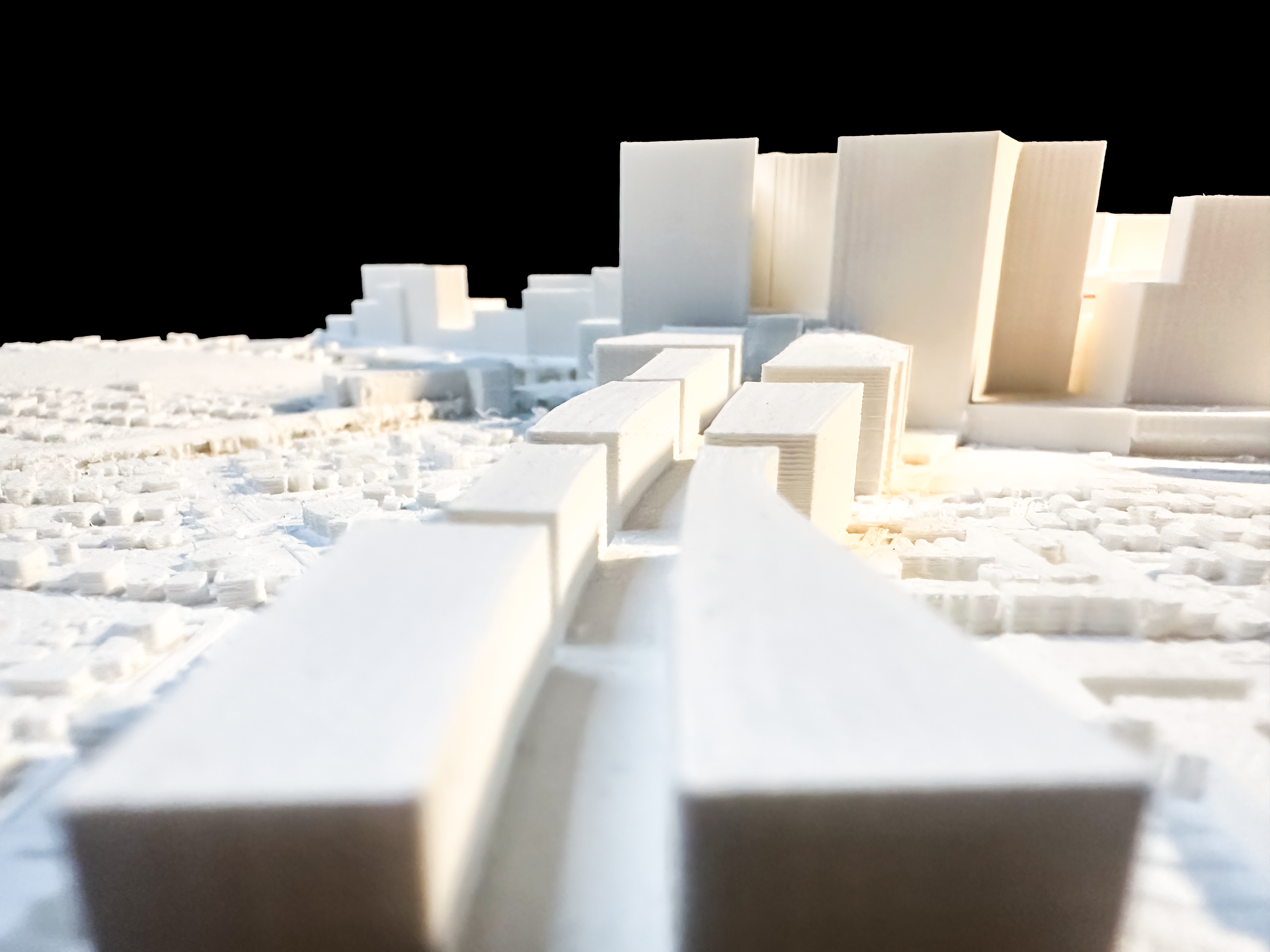

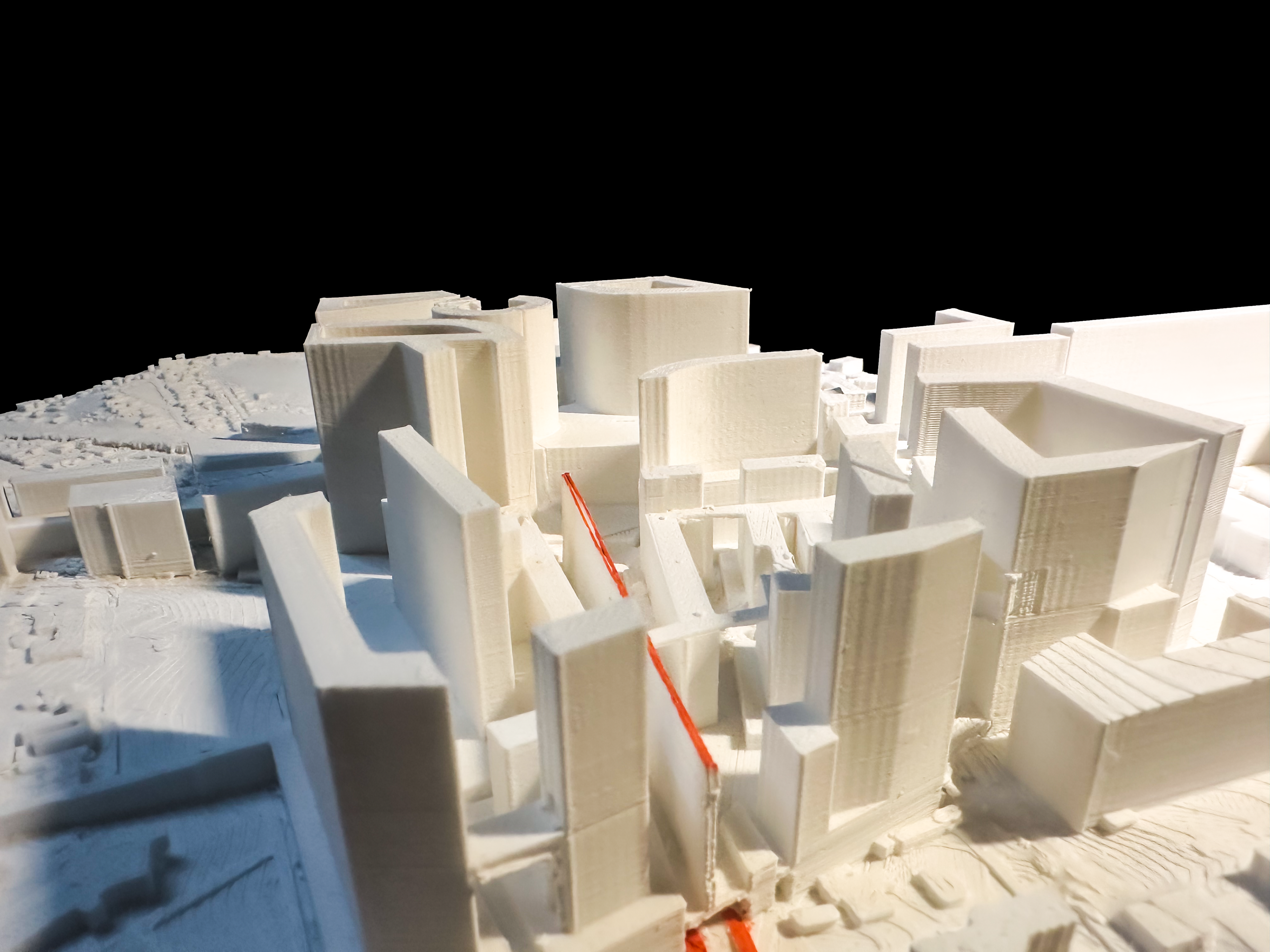

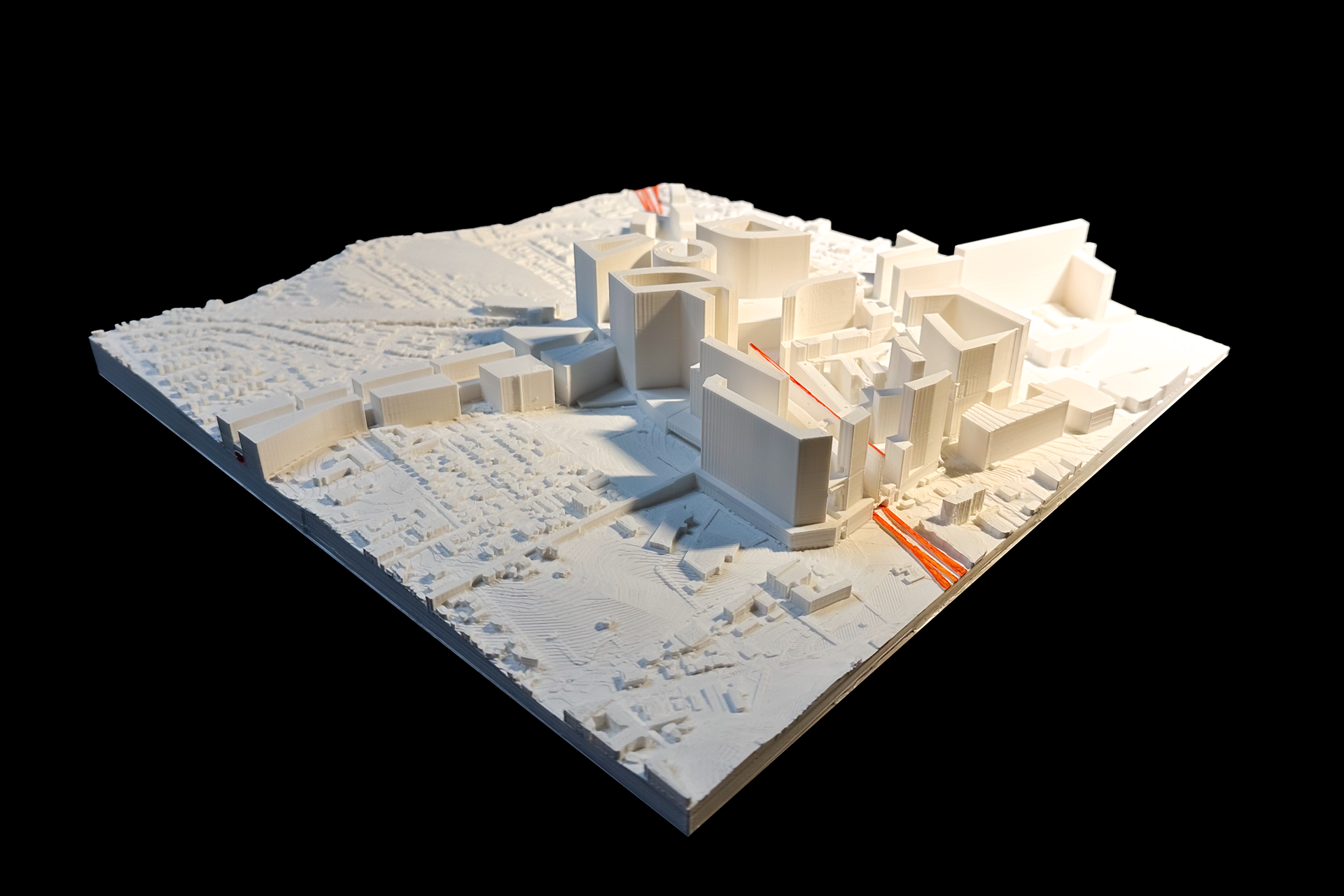

Conjoined Model

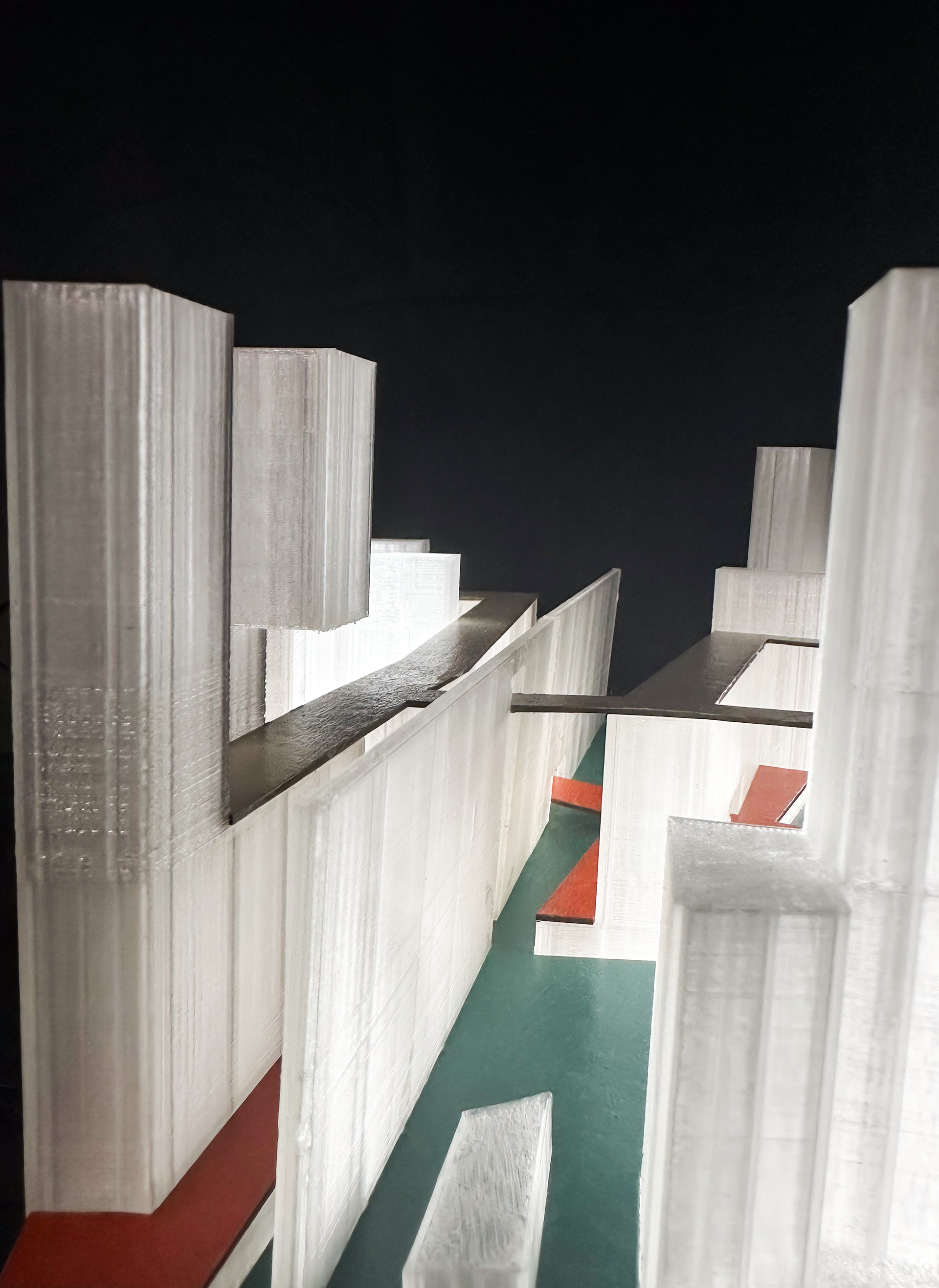

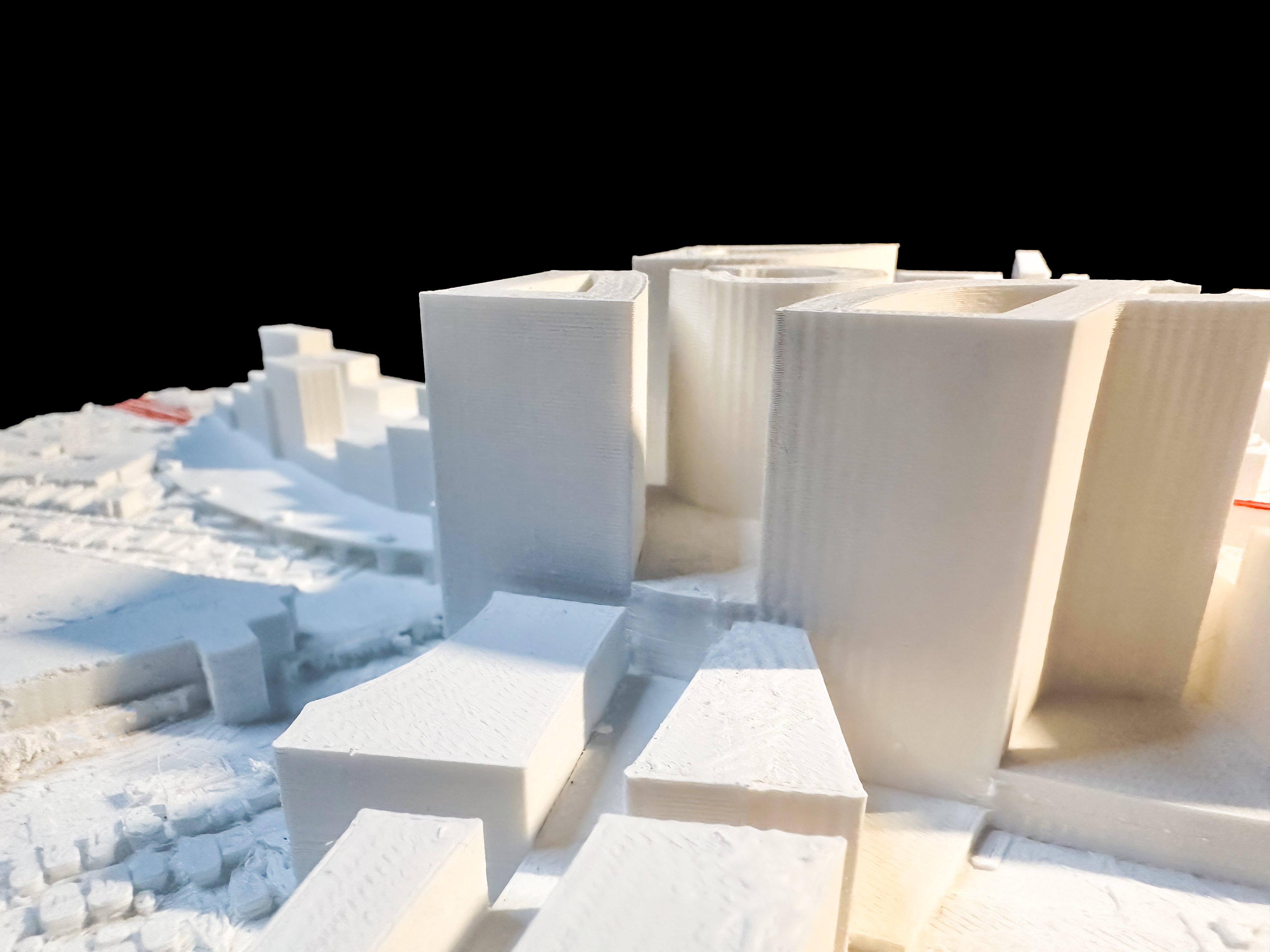

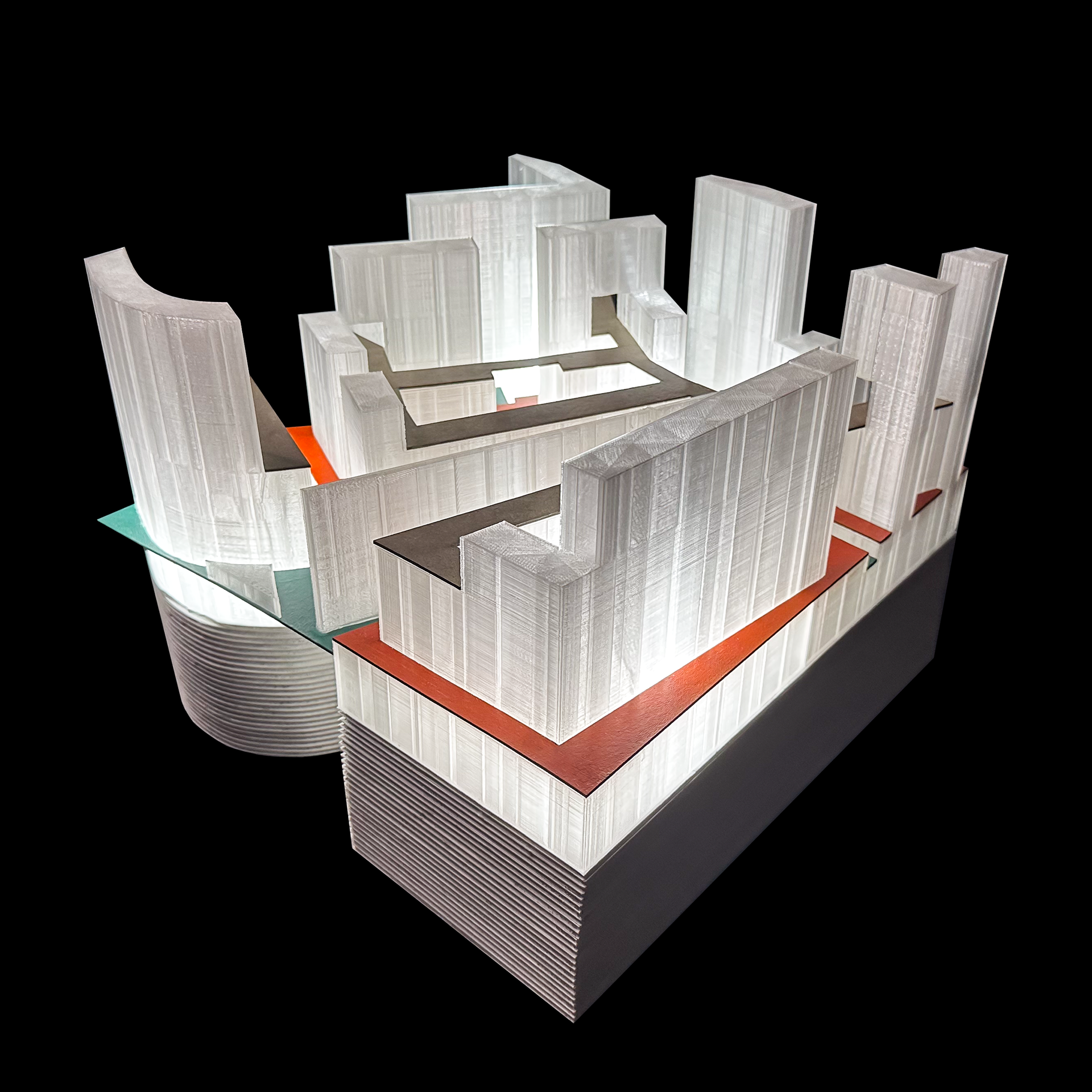

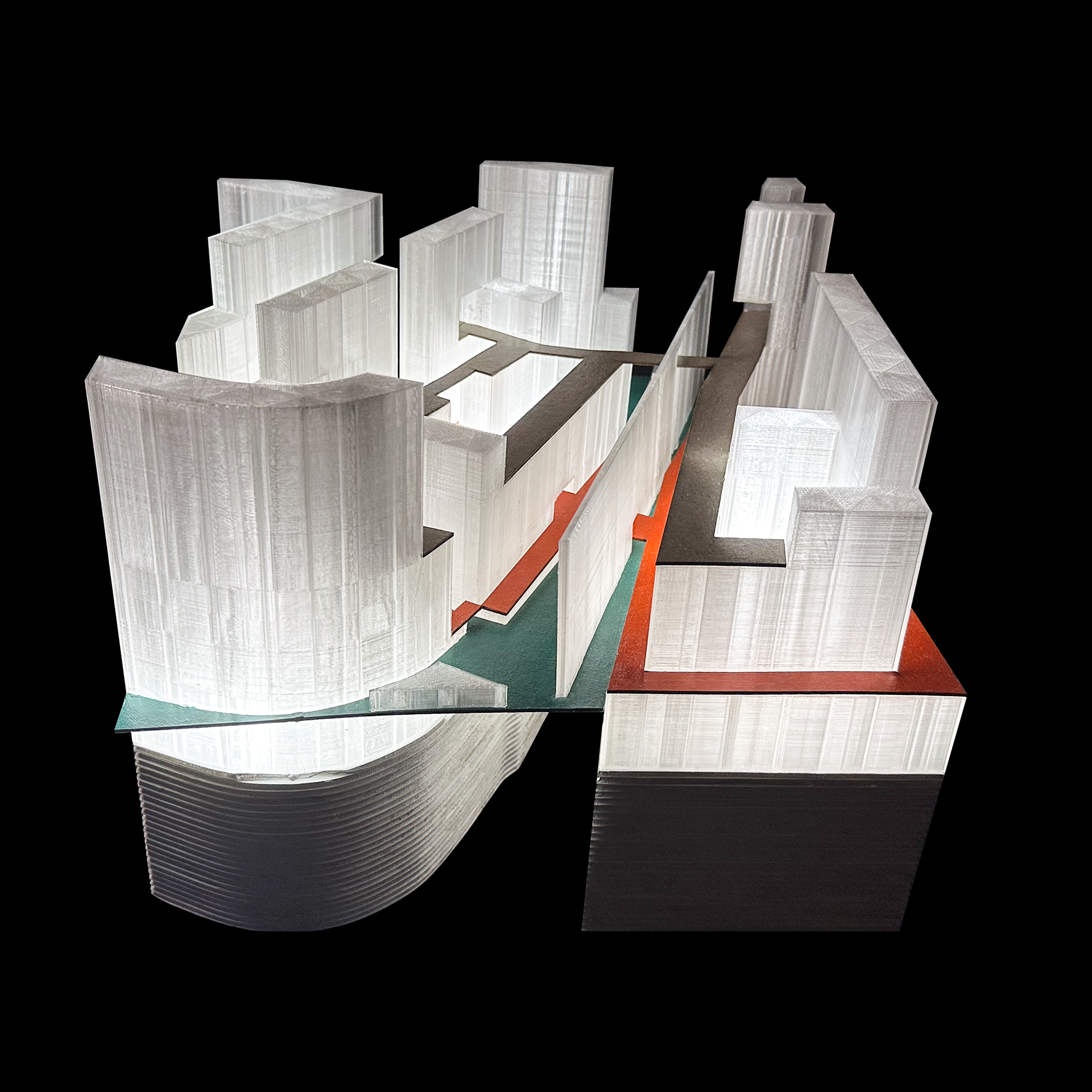

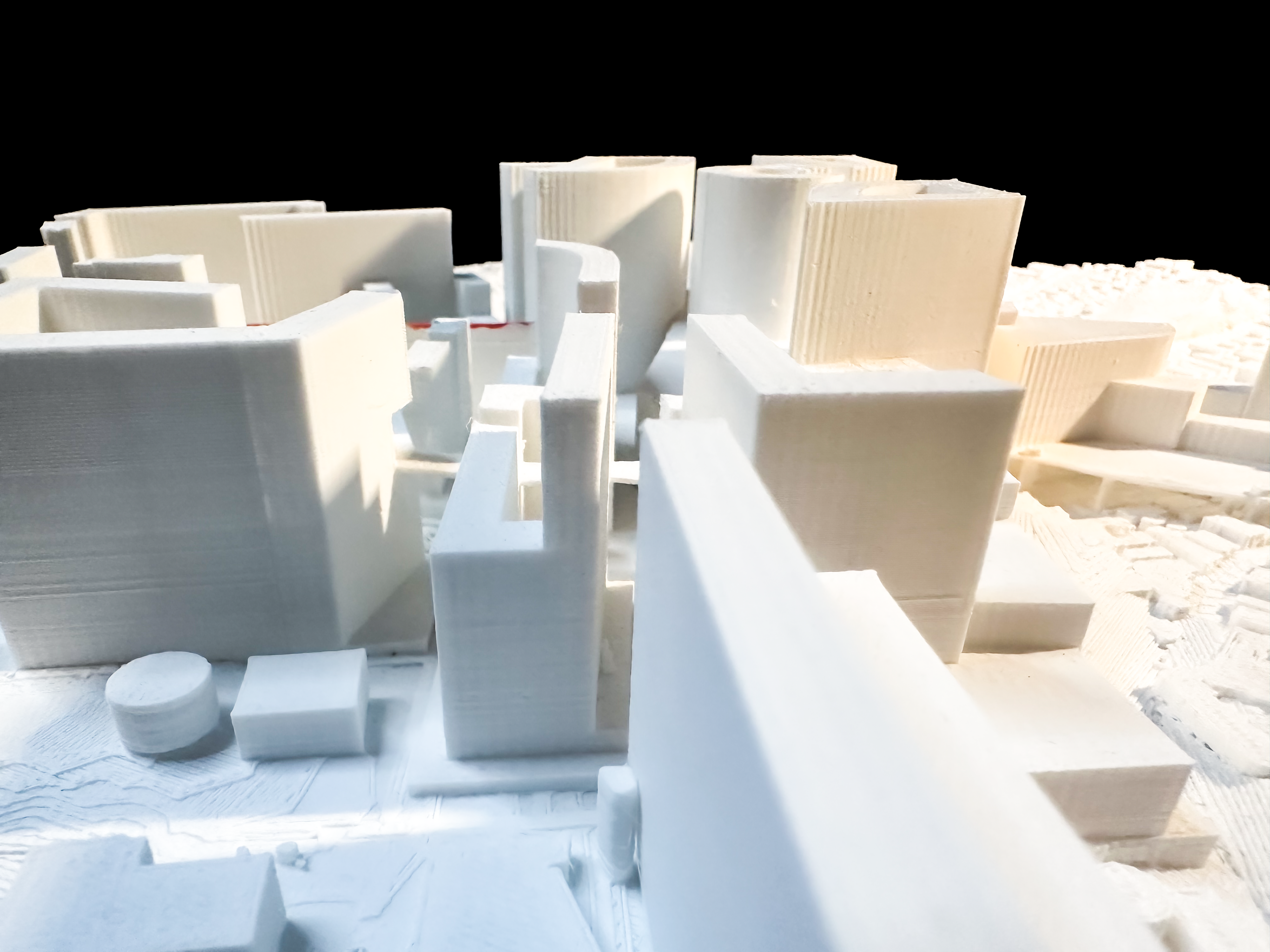

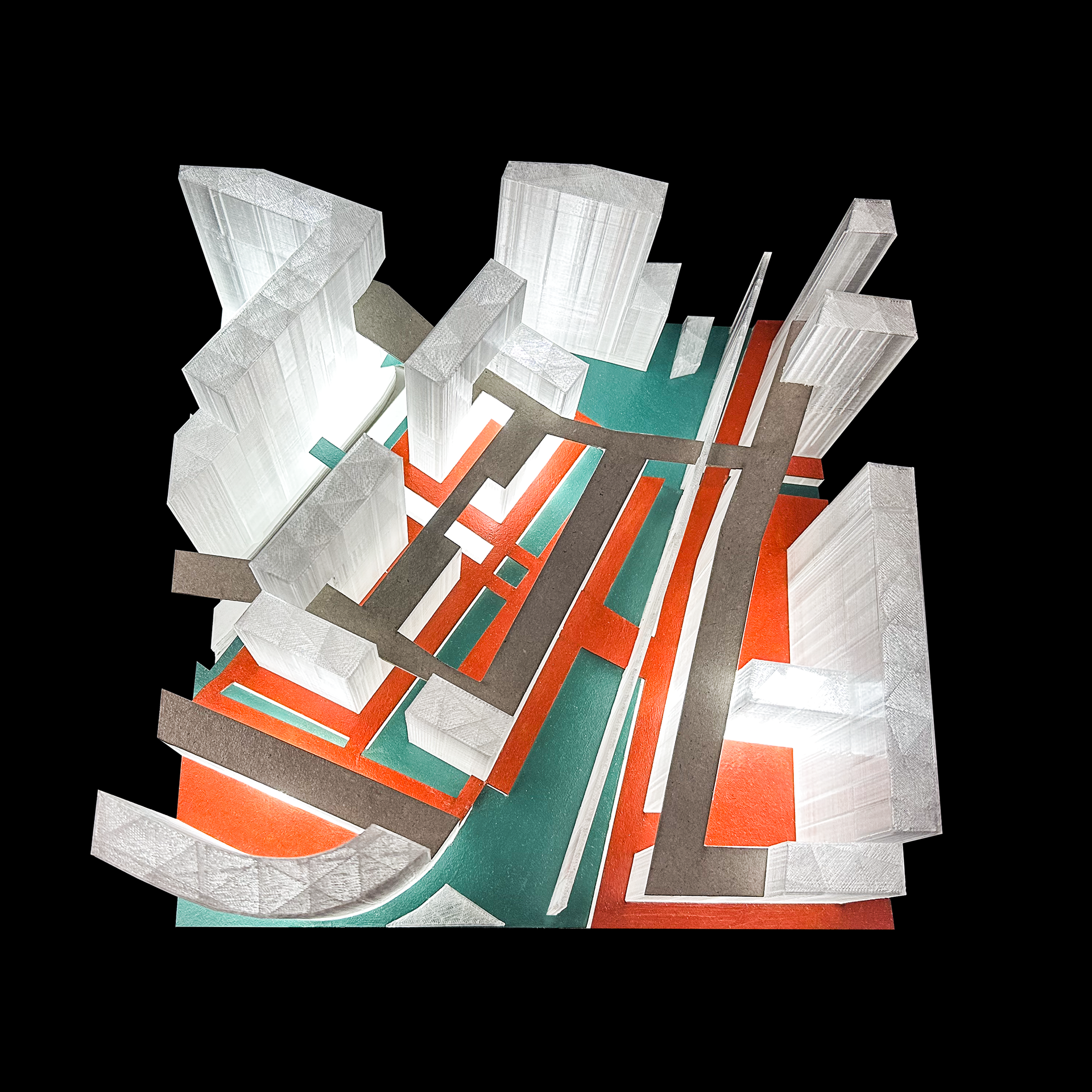

Circulation Concept Model
